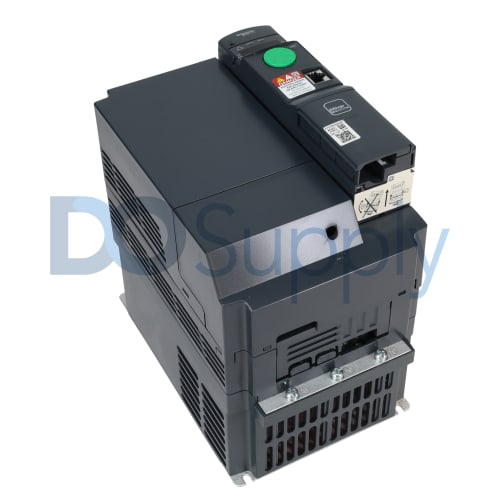

ATV320U55N4B
The ATV320U55N4B from Schneider Electric is a robust variable speed drive designed for reliable performance. This drive operates within an input voltage range of 380 to 500V AC, accommodating a tolerance of ±15%.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV320U55N4B
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Variable speed drive |
| Product Line | Altivar |
| Part Number | ATV320U55N4B |
| EAN | 3606480931291 |
| Weight | 12.19 lbs (5.53 kg) |
| Series | ATV320 |
| Input Voltage Range | 380–500V AC, ±15% tolerance |
| Motor Power Rating | 5.5 kW (Heavy-duty mode) |
| Output Current | 14.3 A Nominal |
| Enclosure Protection | IP20 (Resistant to large solid objects) |
| Integrated EMC Filter | Class C2 for minimized electrical noise |
| Mounting Type | Wall-mounted, compact book-style design |
| Digital Inputs | 7 (Programmable, pulse input supported) |
| Digital Outputs | 3 (Open collector type) |
| Analog Inputs | 3 (Supports voltage and current signals) |
| Analog Output | 1 (Configurable for voltage or current) |
| Braking System | Built-in dynamic braking chopper |
| Switching Frequency | Adjustable from 2 kHz to 16 kHz |
| Physical Size (HxWxD) | 308 x 150 x 232 mm (12.1” x 5.9” x 9.1”) |
| Operating Temperature Range | -10°C to 50°C (Without derating) |
The Schneider Electric ATV320U55N4B variable speed drive delivers efficient motor control for industrial applications. It is capable of handling an input voltage range from 380 to 500V AC, with a tolerance of ±15%, making it versatile for different power situations. Designed for heavy-duty use, this drive supports a motor power rating of 5.5 kW and has a nominal output current of 14.3 A.
The drive features a compact book-style design intended for wall mounting, allowing for space-efficient installation. With an IP20 enclosure, it offers protection against larger solid objects, enhancing its reliability in operational contexts. Additionally, it includes an integrated Class C2 electromagnetic compatibility (EMC) filter that effectively reduces electrical noise during operation.
For connectivity, the ATV320U55N4B is equipped with seven programmable digital inputs, which include support for pulse inputs, along with three open collector digital outputs. The drive also features three analog inputs that accommodate both voltage and current signals, as well as one configurable analog output for either voltage or current. This range of input and output options facilitates a variety of control and monitoring configurations.
Another significant feature is the built-in dynamic braking chopper, providing effective braking capabilities without requiring additional equipment. The switching frequency can be adjusted between 2 kHz and 16 kHz, allowing for optimization based on application needs. With an operating temperature range from -10°C to 50°C, the ATV320U55N4B ensures consistent performance in various environmental conditions. The compact dimensions of this unit are 308 mm in height, 150 mm in width, and 232 mm in depth (12.1” x 5.9” x 9.1”), making it a practical choice for space-constrained installations.
