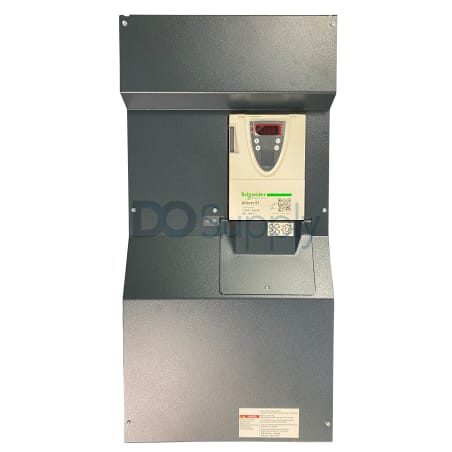

Product image is representative; revision or series may vary. Contact us to request a specific version.
ATV61HC13N4D
The ATV61HC13N4D is a variable-speed drive from Schneider Electric’s Altivar 61 series. Designed for applications needing precise motor control, it has a power rating of 200 horsepower and can handle line currents of 240 A at 480 V and 280 A at 380 V.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV61HC13N4D
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Variable Speed Drive |
| Product Line | Altivar |
| Part Number | ATV61HC13N4D |
| UPC | 785901537823 |
| Weight | 207.00 lbs (93.89 kg) |
| Series | Altivar 61 |
| EMC Filter | Class C2 EMC filter integrated |
| Assembly Style | With heat sink |
| Communication Ports | Modbus, CANopen |
| Line Current | 240 A (480 V), 280 A (380 V) |
| Protection Rating | IP20 |
| Power Rating | 200 HP |
| Maximum Horse Power Rating | 200 HP |
| Torque Accuracy | ±15% |
| Supply Voltage | 380-480 V, 3-phase |
| Switching Frequency | Adjustable |
| Supply Frequency | 50/60 Hz |
The Schneider Electric ATV61HC13N4D is a sophisticated variable-speed drive engineered for enhanced motor regulation across various applications. It offers a remarkable power output of 200 HP, suitable for high-demand industrial environments. The unit can accommodate a line current of up to 240 A at 480 V and 280 A at 380 V.
This drive has an integrated Class C2 EMC filter, which helps reduce electromagnetic interference, making it compliant in sensitive electrical environments. Its assembly style includes a heat sink for efficient thermal management during operation, enhancing its durability.
Weighing 93.89 kg, the ATV61HC13N4D is built to withstand industrial conditions. Its IP20 protection rating safeguards it against dust and accidental contact. It comes equipped with Modbus and CANopen communication ports for connectivity and integration, vital for automation and control setups.
The adjustable switching frequency feature allows for customization based on specific application needs. It operates seamlessly with a supply frequency of 50 or 60 Hz. With ±15% torque accuracy, this variable speed drive provides precise control, making it a reliable choice for various motor-driven systems.
