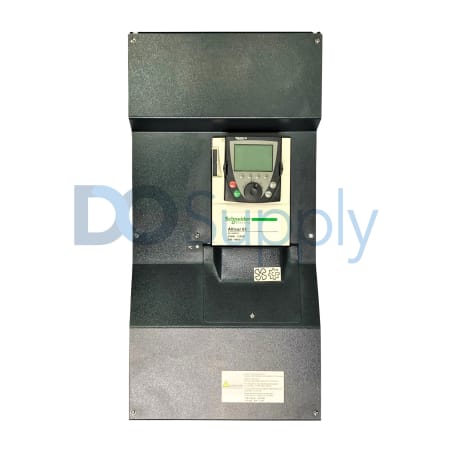

Product image is representative; revision or series may vary. Contact us to request a specific version.
ATV61HD90N4
The ATV61HD90N4 from Schneider Electric is a specialized variable speed drive designed to operate efficiently in various industrial applications. It boasts a power capacity of 90 kW, equivalent to 125 horsepower, providing robust performance with integrated features.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV61HD90N4
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Variable Speed Drive |
| Product Line | Altivar |
| Part Number | ATV61HD90N4 |
| UPC | 785901639640 |
| Weight | 185.00 lbs (83.91 kg) |
| Series | Altivar 61 |
| Assembly Style | With heat sink |
| Maximum Horse Power Rating | 125 HP |
| Nominal Switching Frequency | 12 kHz |
| Protection Rating | IP20 |
| Power Rating | 90 kW / 125 HP |
| EMC Filter | Integrated EMC filter |
| Switching Frequency Range | 1-16 kHz adjustable |
| Supply Voltage | 380-480 V, 3-phase |
| Maximum Transient Current | 94.8 A (60 seconds) |
| Supply Frequency | 50/60 Hz |
| Apparent Power | 55.3 kVA (380 V, 3-phase) |
The Schneider Electric ATV61HD90N4 variable speed drive is designed for optimal motor control in industrial environments. Its maximum power rating is 90 kW, translating to 125 horsepower, accommodating demanding operational requirements. With a net weight of 38.11 kg, this unit is manageable for installation.
This drive is engineered to support three-phase supply voltages between 380 and 480 V. It can function at a supply frequency of either 50 or 60 Hz, which adds to its versatility across different systems. This model can handle a maximum current of 94.8 Amps for transient situations for 60 seconds, ensuring resilience during momentary overloads.
The ATV61HD90N4 operates within an IP20 protection rating, suitable for non-harsh environments. It's equipped with an integrated EMC filter to minimize interference and enhance the reliability of electronic systems. The adjustable switching frequency, ranging from 1 to 16 kHz, allows for customization based on application needs, while the nominal switching frequency is set at 12 kHz for standard operations. This flexibility contributes to improved performance and efficiency across various motor-driven applications.
