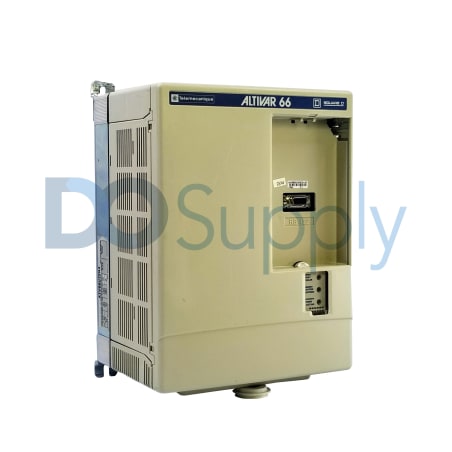

Product image is representative; revision or series may vary. Contact us to request a specific version.
ATV66U72N4
The Schneider Electric ATV66U72N4 model is a variable-speed drive capable of managing a motor power output of up to 5.5 kW (7.5 hp). It operates efficiently within a 380-460 V AC voltage range and provides robust performance for various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV66U72N4
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Variable Speed Drive |
| Product Line | Altivar |
| Part Number | ATV66U72N4 |
| EAN | 3389110441079 |
| Weight | 65.00 lbs (29.48 kg) |
| Series | Altivar 66 |
| Voltage Rating | 380-460 V AC (±10%) |
| Motor Power | 5.5 kW (7.5 hp max) |
| Frequency | 50/60 Hz (±5%) |
| Input Current | 24.4 A at 380 V, 19.5 A at 460 V |
| Storage Temperature | -25 to 70°C (-13 to 158°F) |
| Apparent Power | 7.2 kVA at 400 V |
| Output Frequency | 0 to 0.3 kHz |
| Continuous Output Current | 10.5 A at 400 V |
| Nominal Switching Frequency | 2.5 kHz |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
The Schneider Electric ATV66U72N4, categorized as a variable-speed drive, effectively addresses various motor control needs. It accommodates a voltage rating of 380 to 460 V AC (with a tolerance of ±10%), making it versatile for different electrical environments. The drive is optimized for motors with power requirements reaching up to 5.5 kW (7.5 hp). With an input current rating of 24.4 A at 380 V and a slightly lower 19.5 A at 460 V, it efficiently handles the power demands of connected loads.
Operating within frequency specifications of 50/60 Hz (±5%), the ATV66U72N4 ensures stable performance across various applications. Its output frequency is configurable, ranging from 0 to 0.3 kHz, allowing customization in speed control. In terms of output, the drive can sustain a continuous output current of 10.5 A at a standard of 400 V, alongside a nominal switching frequency set at 2.5 kHz.
The ATV66U72N4 drive has a weight of 4.88 kg and is built to operate in ambient conditions between 0 and 40°C (32 and 104°F). It can also be stored in temperatures as low as -25°C and as high as 70°C (-13 to 158°F), reinforcing its reliability in diverse environments. Apparent power is rated at 7.2 kVA when operating at 400 V, indicating its robust operational capabilities in demanding industrial scenarios.
