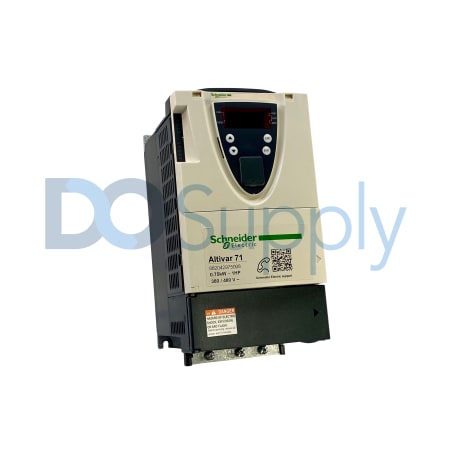

Product image is representative; revision or series may vary. Contact us to request a specific version.
ATV71H075N4
The Schneider Electric ATV71H075N4 exemplifies a robust variable-speed drive suitable for precise motor control applications. It features versatile communication ports and operates efficiently within a broad temperature range.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV71H075N4
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Variable Speed Drive |
| Product Line | Altivar |
| Part Number | ATV71H075N4 |
| UPC | 785901553465 |
| Weight | 15.00 lbs (6.80 kg) |
| Series | Altivar 71 |
| Input Current | 3 A at 480 V, 3.7 A at 380 V |
| EMC Filter | Integrated |
| Apparent Power | 2.4 kVA at 380 V |
| Motor Power | 0.75 kW (1 hp max) |
| Communication Ports | CANopen, Modbus |
| Output Frequency | 0.1 to 599 Hz |
| Voltage Rating | 380-480 V AC (±10%) |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Nominal Switching Frequency | 4 kHz |
| Frequency | 50/60 Hz (±5%) |
| Storage Temperature | -25 to 70°C (-13 to 158°F) |
The Schneider Electric ATV71H075N4 drive, part of the Altivar 71 series, is engineered for dynamic variable speed control. This device supports input currents of 3 A at 480 volts and 3.7 A at 380 volts, allowing for significant flexibility in applications. With an apparent power rating of 2.4 kVA at 380 volts, it effectively handles motor power demands of up to 0.75 kW (1 horsepower maximum).
This drive has integrated communication ports, allowing connectivity through CANopen and Modbus protocols. It operates within a frequency range of 0.1 to 599 Hz, with a nominal switching frequency of 4 kHz. The unit functions efficiently with voltage ratings of 380-480 V AC ±10% and is designed for both 50/60 Hz operation.
Weighing 2.72 kg, the ATV71H075N4 drive is suitable for environments ranging from -10 to 50°C (14 to 122°F). Furthermore, it can be stored in temperatures between -25 and 70°C (-13 and 158°F), ensuring reliability and performance in diverse settings.
