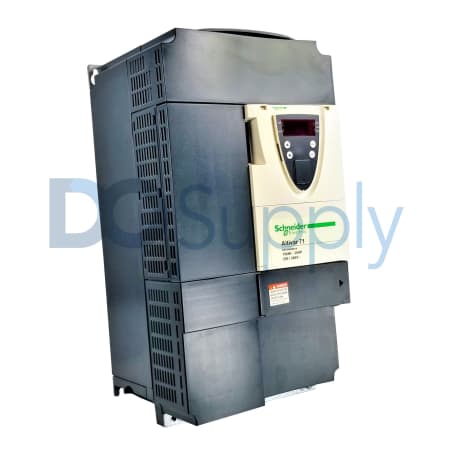

Product image is representative; revision or series may vary. Contact us to request a specific version.
ATV71HD15M3X
The ATV71HD15M3X is a variable-speed drive from the Schneider Electric Altivar 71 series. It is rated for 15 kW (20 hp) and operates on a 3-phase, 230 V AC supply.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV71HD15M3X
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Variable Speed Drive |
| Product Line | Altivar |
| Part Number | ATV71HD15M3X |
| UPC | 785901561484 |
| Weight | 30.00 lbs (13.61 kg) |
| Series | Altivar 71 |
| Motor Power | 15 kW (20 hp) |
| Input Current | 45.8 A |
| Operating Temperature | Typically 0 to 50°C (standard for Altivar 71) |
| Phase | 3-phase |
| Voltage Rating | 230 V AC |
| Storage Temperature | -25 to 70°C |
| Frequency | 50/60 Hz |
| EMC Filter | Without EMC filter |
| Graphic Terminal | Included |
The Schneider Electric ATV71HD15M3X variable-speed drive exemplifies reliable performance in a compact unit. With a power capacity rated at 15 kW (20 horsepower), it is well-suited for demanding motor applications. The drive operates on standard 3-phase 230 V AC power, providing a robust solution for various industrial setups.
Weighing 13.61 kg, the ATV71HD15M3X is designed to handle an input current of 45.8 A, facilitating smooth operation across different load conditions. It operates effectively at ambient temperatures ranging from 0 to 50°C, ensuring stability even in moderately warm environments. For storage needs, it can withstand temperatures as low as -25°C and as high as 70°C, making it versatile for different settings.
Furthermore, this drive operates at frequencies of 50 and 60 Hz. It does not include an EMC filter, which may be relevant for setups where electromagnetic compatibility is critical. A graphic terminal is part of this package, enhancing user interaction and making parameter adjustments straightforward.
