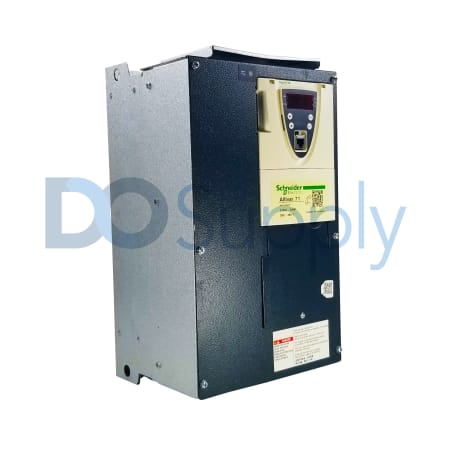

Product image is representative; revision or series may vary. Contact us to request a specific version.
ATV71HD22N4
The ATV71HD22N4 from Schneider Electric is a robust variable-speed drive designed for managing motor operations in demanding applications. At 29.03 kg, it can handle motor power up to 22 kW or 30 hp.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV71HD22N4
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Variable Speed Drive |
| Product Line | Altivar |
| Part Number | ATV71HD22N4 |
| EAN | 3389118069503 |
| Weight | 75.00 lbs (34.02 kg) |
| Series | Altivar 71 |
| Input Voltage | 480 V AC |
| Operating Temperature | Typically 0 to 50°C (standard for Altivar 71) |
| Phase | 3-phase |
| Motor Power | 22 kW / 30 hp |
| Storage Temperature | -25 to 70°C |
| Frequency | 50/60 Hz |
| Phase Status | Phase-Out |
The Schneider Electric ATV71HD22N4 is a variable-speed drive crafted for precision control in motor applications. Designed to operate with a power capacity of 22 kW (30 hp), this model supports a 3-phase input voltage rated at 480 V AC. It weighs 29.03 kg, making it substantial enough to handle industrial applications yet manageable for installation.
The ATV71HD22N4 drive typically operates within a temperature range of 0 to 50°C, ensuring reliability in various conditions. For storage purposes, it can withstand temperatures as low as -25°C and as high as 70°C, contributing to its versatility across different environments.
This unit's frequency specification accommodates both 50 Hz and 60 Hz applications, further enhancing its adaptability. The drive's physical dimensions measure 22.90 cm in width, 41.90 cm in height, and 21.00 cm in depth, allowing for various installation options in control systems. It is important to note that this model has a phase-out status, indicating that it may soon be succeeded or replaced by updated technology.
