ATV71HU22N4

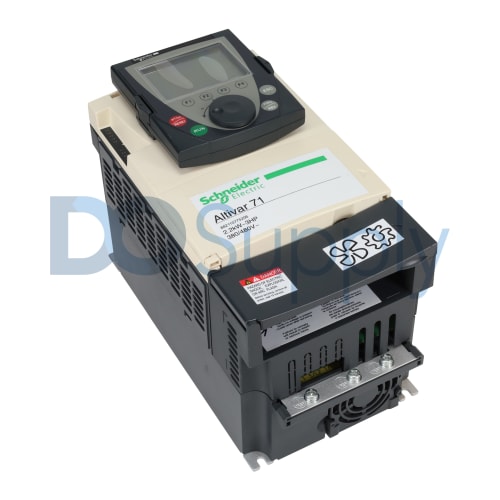

The ATV71HU22N4 model from Schneider Electric's Altivar series is a reliable variable speed drive with a compact design. Supporting three-phase configurations, this device can deliver a maximum power of 2.2 kW and is capable of running motors rated up to 3 horsepower efficiently.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV71HU22N4
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Variable speed drive |
| Product Line | Altivar |
| Part Number | ATV71HU22N4 |
| EAN | 3389118064546 |
| Weight | 11.00 lbs (4.99 kg) |
| GTIN | 3389118064546 |
| Motor Power | 2.2 kW |
| Phase | 3 phases |
| Maximum Horsepower Rating | 3 hp |
| Power Supply Voltage | 380...480 V |
| Line Current | 7.1 A at 480 V, 8.2 A at 380 V |
| EMC Filter | Integrated |
| Apparent Power | 5.4 kVA |
| Output Frequency | 0.1…599 Hz |
| Diagnostic LED | 1 red LED for drive voltage |
| Analog Inputs | 2 inputs |
| Discrete Outputs | 2 outputs |
| Minimum Switching Current | 3 mA at 24 V DC |
The Schneider Electric ATV71HU22N4 is engineered as a variable speed drive with a focus on optimized motor control. Weighing in at 6.6 pounds, it can handle motor power needs up to 2.2 kW. This model operates within a three-phase configuration, achieving a maximum horsepower rating of 3. The power supply voltage ranges from 380 to 480 V, making it suitable for different electrical systems.
The line current ratings indicate 7.1 A at 480 V and 8.2 A at 380 V, allowing the drive to manage substantial loads effectively. This module also includes an integrated EMC filter to reduce electromagnetic interference, enhancing its usability in sensitive environments. The apparent power rating is 5.4 kVA, fitting well within the design's efficiency requirements.
With an output frequency adjustable from 0.1 Hz to 599 Hz, the ATV71HU22N4 accommodates a wide array of applications requiring variable speed control. The built-in diagnostic capabilities feature a single red LED that indicates drive voltage levels, providing immediate feedback to operators. This model is equipped with two analog inputs for versatile signal processing and includes two discrete outputs to manage system-level commands.
Lastly, for reliable performance, the minimum switching current stands at 3 mA at 24 V DC, ensuring compatibility with various input signals. The ATV71HU22N4 is optimized for effective motor performance in diverse operational conditions.
