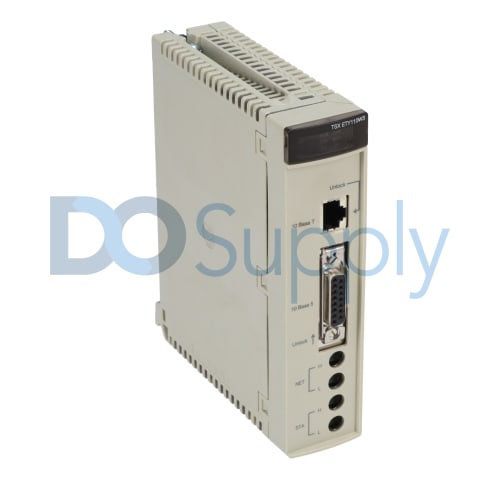

Product image is representative; revision or series may vary. Contact us to request a specific version.
TSXETY110WS
The TSXETY110WS from Schneider Electric is an Ethernet TCP/IP communication module designed for efficient data exchange. Operating at a data transfer speed of 10 Megabits per second, it supports various protocols including Modbus TCP, Uni-Telway, and Ethway/X-Way.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXETY110WS
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Ethernet TCP/IP Communication Module |
| Product Line | Communications |
| Part Number | TSXETY110WS |
| EAN | 3389110123869 |
| Weight | 1.25 lbs (0.57 kg) |
| Data Transfer Speed | 10 Megabits per second (Mbit/s) |
| Supported Protocols | Modbus TCP, Uni-Telway, Ethway/X-Way |
| Physical Ports | AUI (100BASE-5) and RJ45 (10BASE-T) interfaces |
| Electrical Consumption | 800 mA at 5 VDC (direct rack-powered) |
| Diagnostic Indicators | LEDs for collision, status, error, and activity monitoring |
| Network Capacity | Supports up to 64 simultaneous connections |
| Embedded Web Tools | Built-in data configuration and rack visualization interfaces |
| Web Page Storage | 1.4 MB allocated for user-defined web content |
| Environmental Protection Rating | IP20 (protection against limited dust ingress) |
| Operational Temperature Range | 32°F to 140°F (0°C to 60°C) |
| Humidity Tolerance | 10–95% relative humidity (non-condensing at 60°C) |
| Form Factor | Standardized design for rack integration |
| Rack Power Integration | Directly powered through the automation platform’s backplane |
The Schneider Electric TSXETY110WS serves as a dedicated communication module tailored for Ethernet TCP/IP connectivity. This component achieves data transfer speeds up to 10 Megabits per second, making it effective for high-demand applications. It is compatible with several protocols such as Modbus TCP, Uni-Telway, and Ethway/X-Way, facilitating seamless integration into various networking environments.
Designed for connectivity, the module is fitted with physical ports including AUI (100BASE-5) and RJ45 (10BASE-T), offering versatility in connection options. Power consumption is rated at 800 mA at 5 VDC and is supplied directly through the backplane of the automation platform, simplifying installation and reducing wiring complexity.
Diagnostic LEDs are integral to this model, displaying collision, status, error messaging, and activity tracking for immediate awareness of network conditions. Further, the module supports up to 64 simultaneous connections, providing scalability for advanced network setups.
Incorporated within the unit are embedded web tools that aid in easy data configuration and visualization of the rack, enhancing user interaction with the system. The storage capacity of 1.4 MB allocated for user-defined web content allows customization and flexibility in monitoring and control resources.
The operational temperature range for the TSXETY110WS module is specified between 32°F and 140°F (0°C to 60°C), with a humidity tolerance of 10% to 95% relative humidity, ensuring stable performance in non-condensing conditions. Enclosed in an IP20 rated housing, it is designed to withstand limited dust intrusion, making it suitable for typical indoor environments where dust could be a concern. The module's standardized form factor enables easy integration into existing rack systems, streamlining the deployment and maintenance of network infrastructures.
