Product image is representative; revision or series may vary. Contact us to request a specific version.

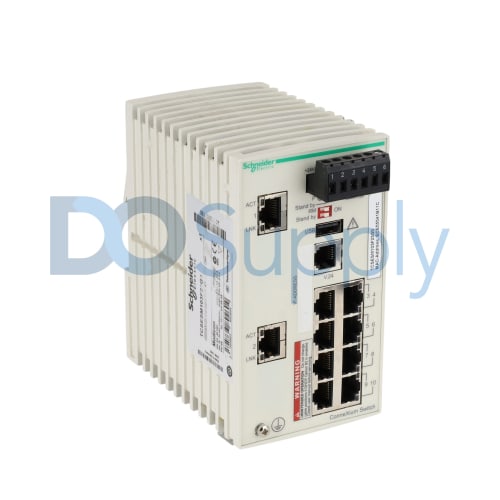

TCSESM103F23G0
Schneider Electric's TCSESM103F23G0 is a network switch designed for reliable connectivity in industrial environments. This device supports Ethernet TCP/IP communication and features 10 ports, including 8 standard Ethernet connections and 2 Gigabit ports.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TCSESM103F23G0
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | ConneXium |
| Part Number | TCSESM103F23G0 |
| EAN | 3595863892604 |
| Weight | 0.94 lbs (0.43 kg) |
| Series | AC Drives |
| Description of Product | Network Switch |
| Concept | Transparent Ready |
| Ethernet | Ethernet TCP/IP |
| Number of Ethernet Ports | 10 |
| Port Type | 10/100BASE-TX - 8 copper cable, 10/100/1000 BASE-TX - 2 copper (Gbit) |
| Cybersecurity | Port Hardening |
| Transmission Support Medium | TSP CAT5E |
| Maximum Cable Distance (meters) | 100m copper |
| Maximum Cable Distance (ft) | 328 ft copper |
| Maximum Switches in a Ring | 50 |
| Supply Voltage Range | 12 to 48 VDC |
| Power Consumption | 8.9W |
| Mounting Support | 35 mm symmetrical DIN rail |
The TCSESM103F23G0 network switch from Schneider Electric is built to enhance networking capabilities in various applications. It is recognized as being transparent ready, allowing for easy integration into existing infrastructures without disruption. Operating under the Ethernet TCP/IP standard, the switch includes a total of 10 ports; specifically, it has 8 ports rated for 10/100BASE-TX connections and 2 ports supporting 10/100/1000BASE-TX for enhanced data transmission speeds.
Security features include port hardening, which helps strengthen the device against cyber threats. For optimal performance, it utilizes TSP CAT5E as the transmission medium and can handle distances of up to 100 meters, or 328 feet, with copper cabling. In terms of configuration, the switch can be included in a networking ring with up to 50 switches. Powering the unit requires a DC supply voltage that falls between 12 to 48 volts, with a nominal power consumption of 8.9 watts.
For installation, the TCSESM103F23G0 is designed for mounting on a 35 mm symmetrical DIN rail. Its physical dimensions are compact, measuring 74 mm in width, 131 mm in height, and 111 mm in depth. With a weight of only 0.41 kg, it is practical for various organizational settings, offering significant flexibility in deployment.
