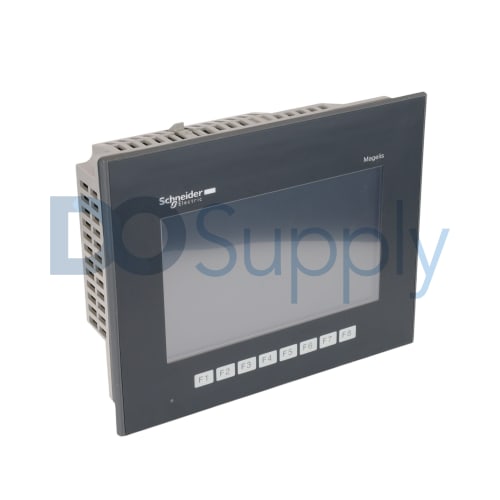

HMIGTO3510

The HMIGTO3510 model is a comprehensive operator panel from Schneider Electric's lineup of HMIs. It is equipped with a 7-inch TFT LCD display that delivers an 800 x 400 pixel WVGA resolution, allowing for detailed and vibrant output with a palette of 65,536 colors. A robust resistive film touch panel enhances user interaction, boasting a lifecycle of up to 1,000,000 cycles, thus ensuring long-lasting performance in operational settings.

This model manages power efficiently with a consumption figure of 8 watts. It operates with a specified supply voltage of 24 VDC but can handle variations from 19.2 to 28.8 VDC, offering flexibility for different system configurations. The HMIGTO3510 is well-suited for both operational and storage conditions, maintaining functionality in environments ranging from 0 to 50°C for active use and -20 to 60°C for storage.

With a humidity tolerance of between 10% and 90% without condensation, it adapts to various workplace conditions effectively. The panel's backlight can last approximately 50,000 hours at room temperature, extending usability without the need for frequent replacements. In terms of compliance, this operator panel meets significant industry standards, as evidenced by its certifications from CE, cULus, KCC, and C-Tick.
