XBTF024510

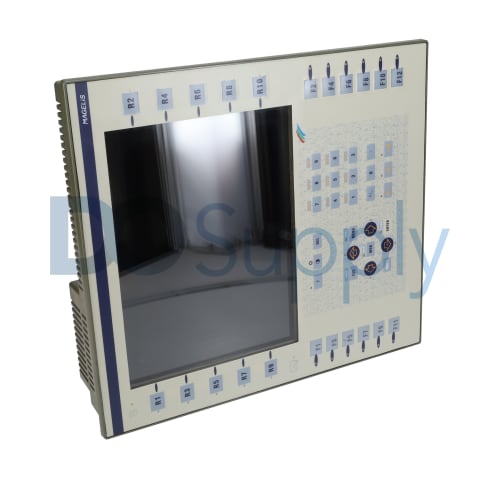

The XBTF024510 model from Schneider Electric is an HMI operator interface terminal within the MAGELiS series. It features a 10.4-inch TFT color display with a resolution of 640 by 480 pixels, supporting up to 256 colors, expanding to 65K based on the version used. This device operates with a power supply of 24 VDC and consumes 35 watts, making it suitable for various control applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for XBTF024510
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | HMI Operator Interface Terminal |
| Product Line | MAGELiS |
| Part Number | XBTF024510 |
| Weight | 4.00 lbs (1.81 kg) |
| Display Size | 10.4 inches |
| Display Type | TFT Color Display |
| Display Resolution | 640 × 480 pixels |
| Display Colors | 256 colors (up to 65K depending on variant) |
| Input Type | Keypad with function & alphanumeric keys |
| Power Supply | 24 VDC |
| Power Consumption | 35 W |
| Communication Protocols | Modbus, Uni-Telway, others (expandable via PCMCIA) |
| Data Storage | Recipe & alarm storage support |
| Mounting | Panel mount (cutout installation) |
| Operating Ambient Temperature | 0 to 45°C |
| Storage Temperature | -20 to 60 °C |
| Humidity | 0 to 85% non-condensing |
The XBTF024510 is an HMI operator interface terminal part of Schneider Electric's MAGELiS series, specifically engineered for effective operator interaction. The 10.4-inch TFT color display delivers a resolution of 640 × 480 pixels, providing vibrant visual feedback with a palette of up to 256 colors, which can be enhanced to 65K shades depending on the variant used.
Input interaction is facilitated through a keypad that accommodates both function and alphanumeric keys, streamlining user commands and navigation. Ensuring reliable operation, the terminal requires a 24 VDC power supply with a consumption rate of 35 watts.
For communication, the XBTF024510 is compatible with multiple protocols, including Modbus and Uni-Telway, with the option to expand capabilities via a PCMCIA slot. This flexibility enables integration into various systems. Additionally, the terminal includes support for recipe and alarm data storage, which is essential for efficient operational management.
Designing for simplicity, the unit is intended for panel mount installation, requiring a cutout to accommodate its dimensions. It operates effectively in environments with temperatures from 0°C to 45°C, and its storage capabilities allow for conditions between -20°C to 60°C. Furthermore, the device is built to function in attics of humidity from 0% to 85% without causing condensation, making it suitable for different industrial applications.
