XBTF034310

|

Need a Specific Revision?

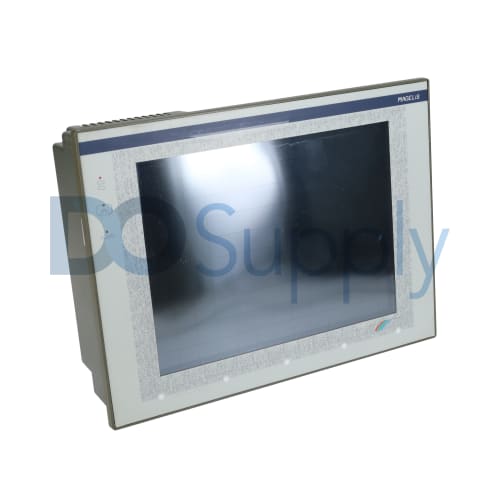

The XBTF034310 is an operator terminal featuring a graphic display from Schneider Electric's MAGELiS series. This module showcases a color touchscreen with a diagonal measurement of 10.4 inches, designed to enhance user interaction with its interface.

Available

Available

Available

$4455

Ships Today

2 in stock

Ships Today.

In Stock

Ships from Raleigh, NC

2 Year DO Supply Warranty

Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with DO Supply's 2-year warranty.

Learn more

Warranty

We sell industrial automation parts backed by our 2-year DO Supply Warranty.
Shipping

Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
Payment Methods

AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
Repairs & Exchanges

Repair and exchange services for all existing automation products.
Reseller Options

Drop shipping, blind shipping, and account shipping with no extra fees.

Technical specifications for XBTF034310

Manufacturer	Schneider Electric
Series	MAGELiS
Part Number	XBTF034310
Name of Module	Operator Terminal with Graphic Screen
Screen Size	10.4 in (264 mm)
Color Type	Color
Supply Voltage	24 VDC
Type III Slot for PCMCIA Communication Card	Yes
Weight	2.4 kg (5.3 lbs.)
Keypad	No
Touchscreen	Yes

Request a Repair

Schneider Electric's XBTF034310 is an operator terminal equipped with a graphic interface, prominent in the MAGELiS series. This terminal is characterized by its 10.4-inch color touchscreen, which measures 264 mm diagonally, allowing for clear and vibrant display output. The unit operates at a supply voltage of 24 VDC, catering to numerous applications where precise control and monitoring are essential.

The operator terminal incorporates a Type III slot enabling the use of a PCMCIA communication card, thus enhancing its capability to connect with various systems and devices. Notably, the XBTF034310 does not include a physical keypad, positioning itself as a modern solution geared towards intuitive touch input. The overall weight of this module is 2.4 kg, equivalent to 5.3 pounds, providing a manageable and solid build for panel installations. This operator terminal is designed to support streamlined interactions while maintaining reliability and functionality in a range of industrial settings.
