Schneider Electric Modicon 984 AS-H827-100

Product image is representative; revision or series may vary. Contact us to request a specific version.

AS-H827-100

|
Need a Specific Revision?

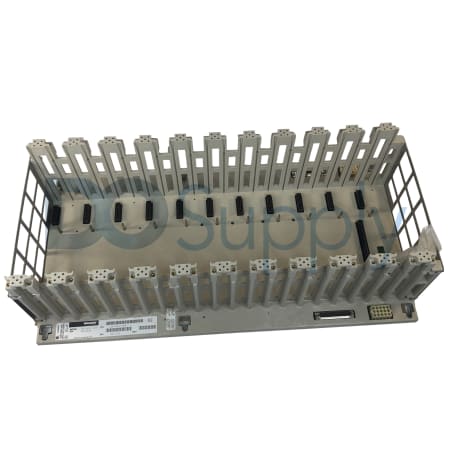

The AS-H827-100 is a robust rack system designed for industrial I/O modules, measuring 27 inches in size. It can accommodate a maximum of 11 I/O modules and is compatible with the standard 800 series backplane.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for AS-H827-100

ManufacturerSchneider Electric
Product TypeRack system for industrial I/O modules
Product LineModicon 984
Part NumberAS-H827-100
Weight22.56 lbs (10.23 kg)
Size27 inches
I/O Module CapacitySupports up to 11 I/O modules
Backplane CompatibilityStandard 800 series I/O backplane
Communication MediumCoaxial cable, 75 Ohm
Communication Rate1.544 MHz
Operating Temperature Range-20°C to +55°C
LED IndicatorsPower, ready, communication active/error
Operating Altitude1000m above sea level
Request a Repair

The AS-H827-100, part of Schneider Electric's Modicon 984 series, functions as a dedicated rack system intended for industrial I/O modules. Measuring 27 inches, this unit is designed to hold up to 11 I/O modules, providing substantial capacity for various applications. It integrates seamlessly with the standard 800 series I/O backplane, ensuring compatibility across various setups.

Communication within this system utilizes a coaxial cable rated at 75 Ohm, offering reliable data transfer at a rate of 1.544 MHz. The AS-H827-100's design includes LED indicators for power status, readiness, and communication activity or error notifications, providing users with clear operational feedback.

For environmental resilience, the AS-H827-100 module operates within a temperature range of -20°C to +55°C and is rated for an operating altitude of 1000 meters above sea level. With an approximate shipping weight of 22.53 pounds, it is manageable for installation and deployment in industrial settings.
