Product image is representative; revision or series may vary. Contact us to request a specific version.

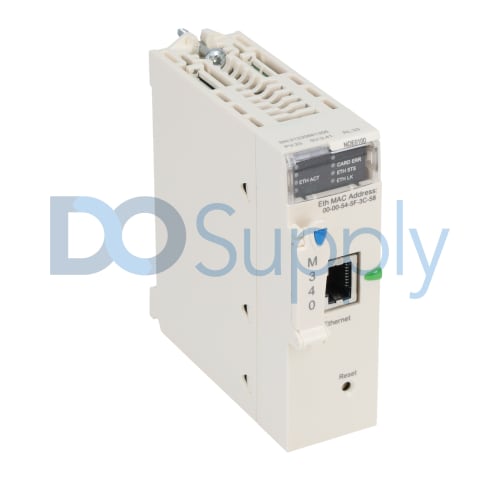

BMXNOE0100
The BMXNOE0100 network module from Schneider Electric is a part of the Modicon M340 series. It is designed to communicate using the Modbus/TCP protocol, enabling seamless integration into various setups.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for BMXNOE0100
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Network Module |
| Product Line | Modicon M340 |
| Part Number | BMXNOE0100 |
| EAN | 3595863910674 |
| Weight | 1.00 lbs (0.45 kg) |
| Communication Protocol | Modbus/TCP |
| Ethernet Interface | 1 x RJ45 (Ethernet port) |
| Ethernet Speed | 10/100 Mbps (Ethernet) |
| Flash Memory | Supports flash memory card for data storage |
| Power Supply | 24V DC (nominal) |
| Current Consumption | 90 mA (maximum) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 95% (non-condensing) |
| Mounting | Rack |
| Certifications | UL, CE, RoHS |
The BMXNOE0100 is a network module by Schneider Electric, incorporated into the Modicon M340 series. This device utilizes the Modbus/TCP communication protocol, which facilitates dependable network interactions within automation systems. An integral feature of this module is its single Ethernet interface, utilizing an RJ45 connection and allowing for Ethernet speeds of 10 or 100 Mbps, catering to varying data transfer requirements.
For data storage needs, the BMXNOE0100 offers support for a flash memory card, which enhances its capability. It requires a nominal power supply of 24V DC, drawing a maximum current of 90 mA. With an operating temperature range from 0°C to 60°C, this module is designed to function effectively in standard industrial conditions. Moreover, it can safely be stored within a temperature range of -40°C to 85°C.
The device can tolerate humidity levels between 10% and 95%, provided that condensation does not occur. It is also tailored for rack mounting, which simplifies integration into existing panel setups. The BMXNOE0100 has been certified to meet multiple standards, including UL, CE, and RoHS, underscoring its reliability and adherence to safety regulations in diverse applications.
