Schneider Electric Modicon Momentum 170AAO12000

Product image is representative; revision or series may vary. Contact us to request a specific version.

170AAO12000

|
Need a Specific Revision?

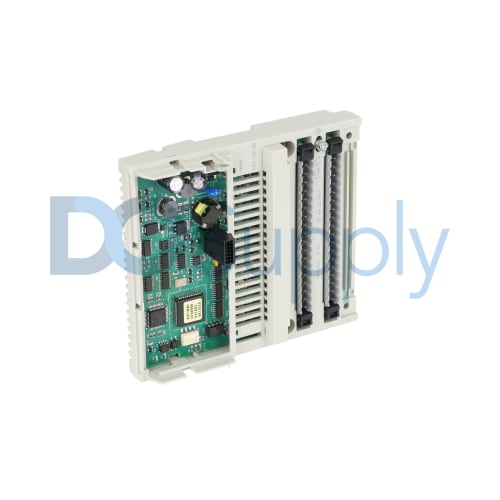

The Schneider Electric 170AAO12000 is designed to serve as an output module within the Modicon Momentum series. Offering four analog outputs, it can handle both current signals from 0 to 20 mA and voltage signals ranging from -10V to 10V, making it versatile for various applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 170AAO12000

ManufacturerSchneider Electric
Product LineModicon Momentum
Part Number170AAO12000
EAN3595861147713
Weight0.50 lbs (0.23 kg)
Product NameOutput Module
Output TypeAnalog
Number of Outputs4
Signal Type (current)0 to 20 mA
Signal Type (voltage)-10V/10V
Data Format16-bit
Output Resolution12 bits + sign for >= 1 Kohm (voltage signal), 12 bits + sign for <= 0.6 Kohm (current signal)
Max. Load Capacitance1 µF
Update Time2 ms
Max. Power Dissipation8.5 W
Power Supply24 VDC
Local Signaling4 LEDs for channel status
Current Consumption150 mA for 24 V DC actuator, 530 mA for 24 V DC base
Request a Repair

The 170AAO12000 unit from Schneider Electric is an analog output module within the Modicon Momentum series. It is structured to deliver outputs in a variety of formats, supporting four distinct channels. Current output capabilities extend from 0 to 20 mA, while voltage outputs range from -10V to 10V. The data format adheres to 16 bits, providing substantial resolution. Specifically, the output resolution amounts to 12 bits with sign for voltage signals at or above 1 Kohm and matches those specifications for current signals below 0.6 Kohm.

For load management, the module can handle a maximum load capacitance of 1 microfarad, which ensures stability in signal transmission. Its update time is efficient at 2 milliseconds, making it suitable for applications demanding prompt responses. The design includes indicators for status, employing four LEDs to provide local signaling for channel statuses.

The energy requirements specify a power supply setup of 24 VDC, with current consumption pegged at 150 mA for actuators and 530 mA for the base. Weighing 0.215 kilograms (0.474 pounds), this module offers a compact form, making it easy to integrate into existing systems while maintaining robust functionality.
