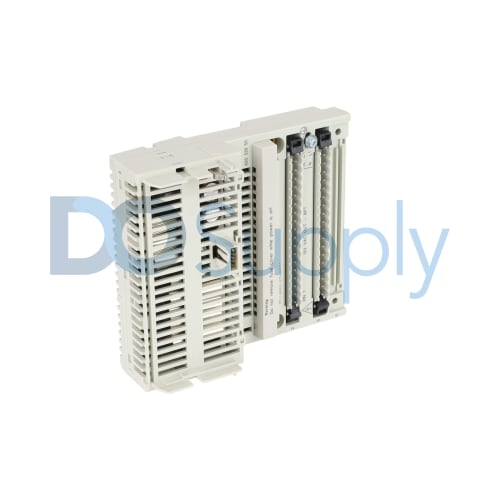

170ADO53050

The 170ADO53050 from Schneider Electric is categorized as a discrete output module within the Modicon Momentum series. This module hosts 8 individual outputs, each rated for operation at 120 volts AC. Utilizing Triac output configuration, it manages a current of 2A per channel, accumulating to a total current capacity of 16 A.

Protection against short circuits is facilitated by an internal fuse, rated at 5 A slow-blow applicable per group. The module is designed to accommodate surge currents with specified thresholds: 10 A for 2 cycles, a higher limit of 15 A for a single cycle, and a lesser threshold of 5 A for 3 cycles, enhancing its robustness.

Its operational requirements include a minimum output threshold of 5 mA and a maximum leakage current of 1.9 mA, ensuring efficient functionality. Under regular use, the maximum voltage drop across each output does not exceed 1.5 volts when operating at 2 A.

The module provides a reliable overload protection mechanism via another internal fuse while maintaining a rapid response time of 0.5 line cycles between state transitions. For channel isolation, it guarantees a potential of 1780 V AC for up to 1 minute, ensuring electrical safety. Standard power dissipation for this module averages around 6 watts, with a peak consumption of 7.5 watts. The 170ADO53050 delivers effectiveness in controlling industrial automation processes through a dependable discrete output system.
