Schneider Electric Modicon Momentum 170ANR12090

Product image is representative; revision or series may vary. Contact us to request a specific version.

170ANR12090

|
Need a Specific Revision?

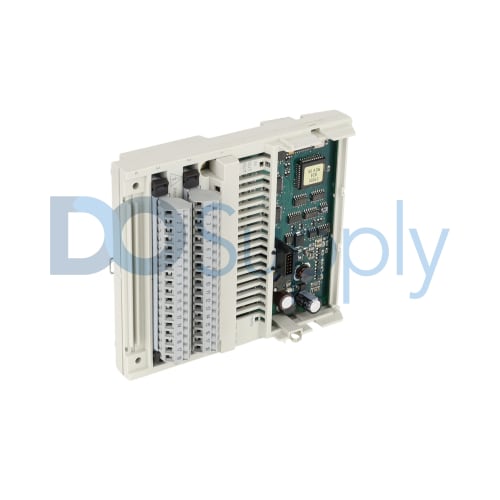

The Schneider Electric 170ANR12090 is an I/O module designed for both analog and discrete configurations. With a single-ended analog input range of 0 to 10 V and a resolution of 14 bits, it accommodates precise data acquisition and control.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 170ANR12090

ManufacturerSchneider Electric
Product LineModicon Momentum
Part Number170ANR12090
UPC785901435150
Weight0.50 lbs (0.23 kg)
SeriesI/O Modules
NameAnalog, discrete I/O base
Analog Input Range0...10 V
Analog Input TypeSingle ended
Analog Input Resolution14 bits 0...10 V
Discrete Input Voltage24 V DC
Analog Output Range0...10 V 14 bits
Discrete Output Voltage10...30 V
Discrete Input Number8
Current Consumption400 mA
Operating Altitude<= 16404.2 ft (5000 m)
Relative Humidity95 % without condensation
Ambient Air Temperature for Operation0…60 °C
Ambient Air Temperature for Storage-40…85 °C
Electrical Connection2 connectors
Request a Repair

The Schneider Electric part number 170ANR12090 serves as a versatile I/O base module that integrates analog and discrete functionalities. Its analog input capability spans from 0 to 10 V, with a configuration that utilizes single-ended connections. This module yields a 14-bit resolution, ensuring high fidelity in signal processing. Additionally, it can output analog signals within the same range while maintaining a 14-bit resolution.

For discrete operations, the device accommodates an input voltage of 24 V DC, effectively handling eight distinct discrete inputs. The discrete outputs function across a voltage range of 10 to 30 V, enhancing its adaptability for various applications. Current consumption is rated at 400 mA, making it efficient in power management.

Designed for diverse environmental conditions, this module operates effectively at altitudes of up to 16404.2 feet (5000 meters) and can endure temperatures from 0 to 60 °C during operation. For storage, it withstands broader temperature variations from -40 to 85 °C, showcasing its robustness for various scenarios.

The 170ANR12090 is also constructed to function under high humidity levels of 95% without condensation. Weighing 0.53 lb (0.24 kg), it connects through two electrical connectors, facilitating simple integration into existing systems.
