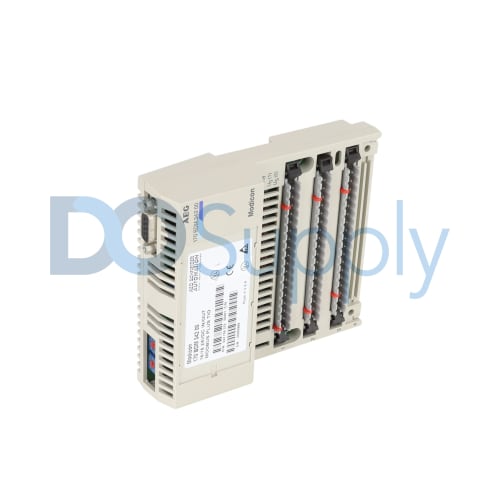

170BDM34200
The Schneider Electric 170BDM34200 functions as a reliable remote I/O module. Designed specifically for use with a Modicon Momentum system, it offers 16 inputs and 16 outputs for efficient signal processing and control.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 170BDM34200
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Remote I/O Module |
| Product Line | Modicon Momentum |
| Part Number | 170BDM34200 |
| Weight | 0.69 lbs (0.31 kg) |
| Series | I/O Modules |
| Number of Inputs/Outputs | 16 Inputs / 16 Outputs |
| Module Type | Discrete I/O, Solid State |
| Protection Class | IP20 |
| Voltage Rating | 24 V DC |
| Power Consumption | 2 W |
| Mounting Type | DIN Rail |
| Application | Remote I/O for Modicon Momentum |
| Communication Protocol | Modbus Plus |
| Contact Type | Contact Blocks |
| Connector Type | Screw terminal |
| Operating Temperature Range | 0°C to 60°C |
The 170BDM34200 by Schneider Electric serves as a compact remote I/O module ideal for industrial applications. Specifically engineered for use with the Modicon Momentum series, this module simplifies signal management by providing 16 inputs and 16 outputs. It employs discrete I/O technology with solid-state architecture for enhanced durability and performance.
With an operational voltage rating of 24 V DC, this module offers a power consumption of 2 watts. The protection classification of IP20 means it is best suited for environments free from excessive moisture and contaminants. The module accommodates a wide operating temperature range from 0°C to 60°C, ensuring stable performance across diverse conditions.
The 170BDM34200 module is designed for a straightforward installation using DIN rail mounting, facilitating integration within control panels. At a weight of just 0.14 kilograms, it is lightweight yet robust. Communication capabilities are facilitated through the Modbus Plus protocol, enabling it to interface seamlessly with other devices. The unit’s contact blocks and screw terminal connectors make wiring and connections straightforward and reliable.
