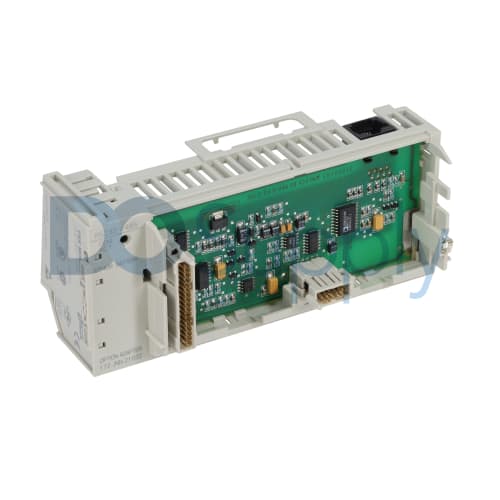

Product image is representative; revision or series may vary. Contact us to request a specific version.
172JNN21032
The Schneider Electric 172JNN21032 is a serial link adapter module designed for integration within the Modicon Momentum series. Operating on a supply voltage of 5 volts DC, it requires a current of 700 milliamperes at 12 volts DC, making it suitable for different control applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 172JNN21032
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Serial Link Adapter Module |
| Product Line | Modicon Momentum |
| Part Number | 172JNN21032 |
| Weight | 1.00 lbs (0.45 kg) |
| Rated Supply Voltage | 5 Volts DC |
| Current Consumption | 700 milliamperes at 12 Volts DC |
| Ambient Operating Temperature | 0 to 60°C (in a non-condensing environment) |
| Protection Class | IP20 |
| Battery Type | Lithium battery |
| Storage Temperature | -40 to 85°C (in a non-condensing environment) |
| Battery Life Span | Approximately 5 years |
| Type of Communication Port | RS-485 or RS-232 port |
| Electrical Connection Type | One 9-pin D-shell Modbus Plus connector |
| Coating Type | Conformal coating |
| Status Indicators | One communication LED |
| Operating Altitude | Less than 6,561 feet (2,000 meters) |
The 172JNN21032 from Schneider Electric serves as a serial link adapter module within the Modicon Momentum line. Designed to work with a rated supply voltage of 5 Volts DC, it has a current consumption of 700 milliamperes at a voltage of 12 Volts DC. This component is capable of operating efficiently in an ambient temperature range between 0 and 60°C, provided it is kept in a non-condensing environment.
Engineered with a protection class rating of IP20, this module is suited for applications where exposure to dust and moisture is limited. It relies on a lithium battery, which has an estimated lifespan of around five years, enhancing its longevity. The unit also maintains a storage temperature range of -40 to 85°C which makes it adaptable for various conditions.
Communication is facilitated through RS-485 or RS-232 ports, utilizing a dedicated electrical connection via a 9-pin D-shell Modbus Plus connector. Visual status is indicated by a communication LED that helps users monitor its operational state. The unit is treated with conformal coating, providing additional protection to electronic components. With dimensions measuring 0.98 inches tall, 5.63 inches wide, and 2.37 inches deep, it is lightweight at just 0.19 pounds. Additionally, it is certified for operation at altitudes under 6,561 feet (2,000 meters), ensuring reliable performance even in elevated conditions.
