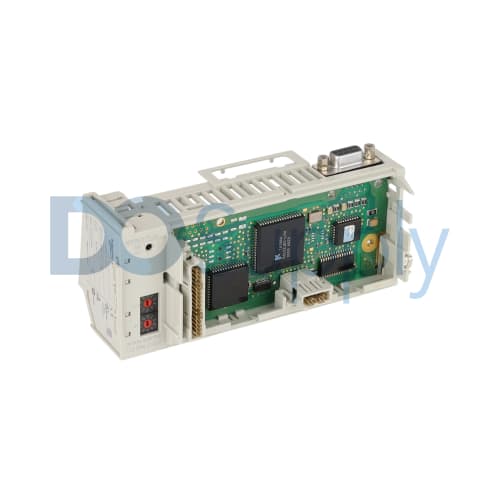

172PNN21022
The 172PNN21022 from Schneider Electric is a Modbus Plus Adapter Module designed for precise connectivity and control. This device operates on a supply voltage of 5 Volts DC and incorporates a 9-pin D-shell connector for users.
-
We sell industrial automation parts backed by our 2-year DO Supply Warranty.
-
Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
-
Repair and exchange services for all existing automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 172PNN21022
| Manufacturer | Schneider Electric |
|---|---|
| Series | Modicon Momentum |
| Part Number | 172PNN21022 |
| Electrical Connection Type | One 9-pin D-shell Modbus Plus connector |
| Protection Class | IP20 |
| Coating Type | Conformal coating |
| Weight | 0.19 pound (0.085 kilogram) |
| Dimension | 0.98 inches tall, 5.63 inches wide, and 2.37 inches deep (25 millimeters tall, 143.1 millimeters wide, and 60.1 millimeters deep) |
| Rated Supply Voltage | 5 Volts DC |
| Status Indicators | One communication LED |
| Current Consumption | 200 to 350 milliamperes at 24 Volts DC |
| Product Type | Modbus Plus Adapter Module |
| Ambient Operating Temperature | 0 to 60°C (in a non-condensing environment) |
| Storage Temperature | -40 to 85°C (in a non-condensing environment) |
| Communication Protocol | Modbus Plus |
| Operating Altitude | Less than 6,561 feet (2,000 meters) |
| Battery Type | Lithium battery |
| Battery Life Span | Approximately 5 years |
The Schneider Electric Modicon Momentum 172PNN21022 functions as a Modbus Plus Adapter Module, facilitating communication in various systems. It features a compact design, measuring 0.98 inches in height, 5.63 inches in width, and 2.37 inches in depth. Weighing only 0.19 pound (0.085 kilogram), it is lightweight and easy to integrate into existing installations.
This device is equipped with a 9-pin D-shell Modbus Plus connector, making connections straightforward. The assembly requires a rated supply voltage of 5 Volts DC to operate efficiently. Current consumption ranges from 200 to 350 milliamperes when supplied with 24 Volts DC, ensuring sufficient energy for its functions.
The product boasts a conformal coating that enhances its durability in various operating environments, though its protection class is rated at IP20, indicating it is best used within controlled settings. Users can monitor the communication status via a single LED indicator on the device.
Operating ambient temperatures range from 0 to 60°C, provided that conditions remain non-condensing. For storage, this module can handle temperatures between -40 and 85°C, making it capable of withstanding diverse environmental conditions. When considering altitude, the operating altitude is limited to under 6,561 feet (2,000 meters), adhering to standard operational boundaries.
Additionally, the 172PNN21022 contains a lithium battery, which has an estimated lifespan of approximately 5 years, assuring reliable long-term functionality. Overall, this module is engineered to enhance Modbus Plus communication under specified conditions.
