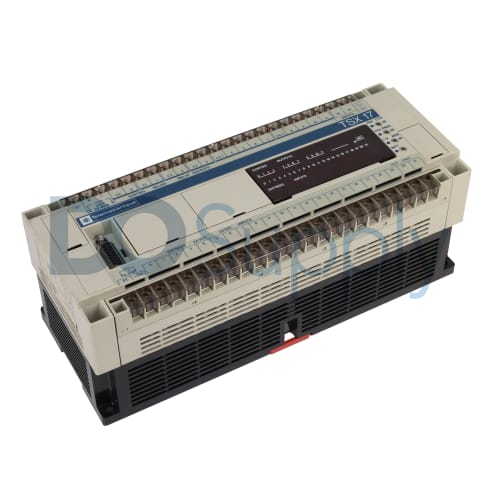

Product image is representative; revision or series may vary. Contact us to request a specific version.
TSX1723428
The TSX1723428 from Schneider Electric is a programmable controller in the Modicon Nano TSX-17 series. This device operates at a rated supply voltage of 110/240 Volts AC and supports isolated 24 Volts DC inputs with relay output options.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSX1723428
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Programmable controller |
| Product Line | Modicon Nano TSX-17 |
| Part Number | TSX1723428 |
| Weight | 1.00 lbs (0.45 kg) |
| Rated Supply Voltage | 110/240 Volts AC |
| Input Type | 24 Volts DC isolated input |
| Output Type | Relay output |
| Supported Memory Type | EEPROM and EPROM |
| Memory Size | 8 kilobytes (maximum) |
| Type of Electrical Connection | Removable terminal block |
| Protection Rating | IP20 |
| Ambient Operating Temperature | 5 to 55°C (non-condensing) |
| Storage Temperature | -25 to 70°C (non-condensing) |
| Number of Inputs/Outputs | 34 input/output channels |
| Internal Memory Back-Up Time | Approximately 1 hour |
| Battery Life Span | Approximately 2 years |
| Thermal Current Rating | 3 Amperes |
| Operating/Installation Altitude | 6,561.68 feet (2,000 meters) above sea level |
The TSX1723428, a model from Schneider Electric’s Modicon Nano TSX-17 series, is a programmable controller ideal for various automation tasks. It functions within a rated supply voltage between 110 and 240 Volts AC. The input configuration accepts isolated 24 Volts DC, while the output is designed as a relay type, ensuring reliability in various control applications.
This controller is equipped with 34 input/output channels, providing a robust solution for diverse system integrations. Memory capabilities are set at a maximum of 8 kilobytes, utilizing both EEPROM and EPROM types for efficient storage solutions. The internal memory can retain data and applications for around one hour in case of power loss, aided by a battery that can last approximately two years.
The device employs a removable terminal block to simplify terminal access and wiring for electrical connections. It maintains an IP20 protection rating, making it suitable for indoor use in controlled conditions. Ambient operating temperatures range between 5 and 55°C, avoiding condensation, while it can withstand storage conditions of -25 to 70°C.
The TSX1723428's thermal performance is rated at 3 Amps, and the device can be installed at an altitude of up to 6,561.68 feet (2,000 meters) above sea level, ensuring usability in various geographical locations. The TSX1723428 is engineered for reliable operation and solid performance in a programmable controller format.
