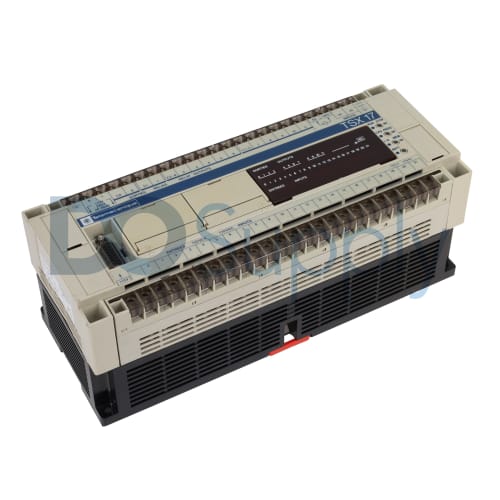

Product image is representative; revision or series may vary. Contact us to request a specific version.
TSX1723444
The TSX1723444 model from Schneider Electric's Modicon Nano TSX-17 series functions as a versatile automation controller. It offers 34 input/output channels and operates at a supply voltage ranging from 110 to 240 volts AC, facilitating flexibility in electrical integration.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSX1723444
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | Modicon Nano TSX-17 |
| Part Number | TSX1723444 |
| Weight | 1.00 lbs (0.45 kg) |
| Protection Rating | IP20 |
| Number of Inputs/Outputs | 34 input/output channels |
| Rated Supply Voltage | 110/240 Volts AC |
| Internal Memory Capacity | 24 kilobytes |
| Input Type | 24 Volts DC isolated input |
| Output Type | Relay output |
| Ambient Operating Temperature | 5 to 55°C (in a non-condensing environment) |
| Programming Instructions | PL7-1 Boolean language |
| Battery Life Span | Approximately 2 years |
| Internal Memory Back-Up Time | Approximately 1 hour for data and application program |
| Operating/Installation Altitude | 6,561.68 feet (2,000 meters) above sea level |
| Storage Temperature | -25 to 70°C (in a non-condensing environment) |
| Type of Electrical Connection | Removable terminal block |
| Supported Memory Type | EEPROM (Electrically Erasable Programmable Read-Only Memory) and EPROM (Erasable Programmable Read-Only Memory) |
| Input Frequency | 50 to 60 Hertz |
The Schneider Electric TSX1723444, belonging to the Modicon Nano TSX-17 series, serves as a reliable automation module designed for intricate control applications. This device features 34 input/output channels, enabling it to manage multiple signals efficiently. It is adaptable to various industrial environments with a rated supply voltage ranging from 110 to 240 volts AC.
The TSX1723444 operates with a 24-volt DC isolated input, making it compatible with many sensor types and inputs. Additionally, it uses relay outputs, providing robust connectivity options for external devices. Internally, this controller has a memory capacity of 24 kilobytes, which is suitable for numerous applications when combined with the programming capabilities offered by the PL7-1 Boolean language.
Regarding environmental specifications, the module can function effectively within an ambient operating temperature range of 5 to 55°C, provided the environment remains non-condensing. It can also operate at high altitudes, reaching up to 6,561.68 feet (2,000 meters) above sea level. For memory stability, it supports EEPROM and EPROM storage types, ensuring data integrity.
The TSX1723444 is designed with a removable terminal block for electrical connections, facilitating installation and maintenance tasks. The internal power source's battery life is approximately two years, and the memory backup for data and application programs lasts around one hour during power loss. The module also has a suitable storage temperature range from -25 to 70°C, ensuring its resilience in various conditions. Input frequency compatibility lies between 50 and 60 hertz, confirming its functionality in diverse operational settings.
