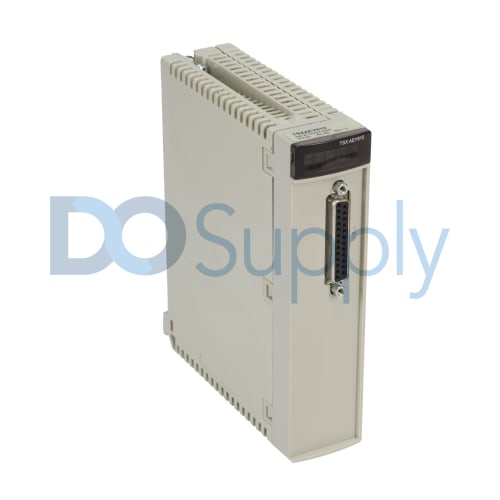

Product image is representative; revision or series may vary. Contact us to request a specific version.
TSXAEY810
The TSXAEY810 serves as an analog input module within the Modicon Premium series from Schneider Electric. This module supports up to 8 analog inputs, enabling precise data acquisition for control applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXAEY810
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | Modicon Premium |
| Part Number | TSXAEY810 |
| EAN | 3389110876345 |
| Weight | 0.75 lbs (0.34 kg) |
| Module Name | Input Module |
| Input Type | Analog |
| Number of Analog Inputs | 8 |
| Isolation Type | Low Level isolated inputs |
| ADC Resolution | 16-bit |
| Nominal Read Cycle Time | 29.7 ms |
| Connection | SUB-D 25 |
| Current Consumption | 475 mA at 5 VDC |
| Degree of Protection | IP20 |
| Altitude | 0 to 2000 meters |
The Schneider Electric TSXAEY810 analog input module is a critical component of the Modicon Premium series. It facilitates the connection of up to 8 analog sensors, allowing for comprehensive monitoring and control capabilities. Each input is designed with low-level isolation to maintain signal integrity and prevent interference, making it ideal for precision applications.
The module boasts a 16-bit ADC resolution, which provides high accuracy in analog signal conversion. Data from connected inputs can be read with a nominal cycle time of 29.7 milliseconds, ensuring timely updates for real-time systems. Its connection is established through a SUB-D 25 interface, which is a robust standard for industrial systems.
Current consumption is rated at 475 mA while operating at a voltage of 5 VDC, making it efficient for integration into various setups. Weighing only 0.33 kg (0.73 lbs), the TSXAEY810 is compact and lightweight, enhancing its usability in space-constrained environments.
The device is rated to IP20 for its degree of protection, suitable for indoor applications that ensure dust and solid object protection. This module is also capable of functioning effectively at altitudes ranging from 0 to 2000 meters, allowing for flexibility in installation across diverse operational settings.
