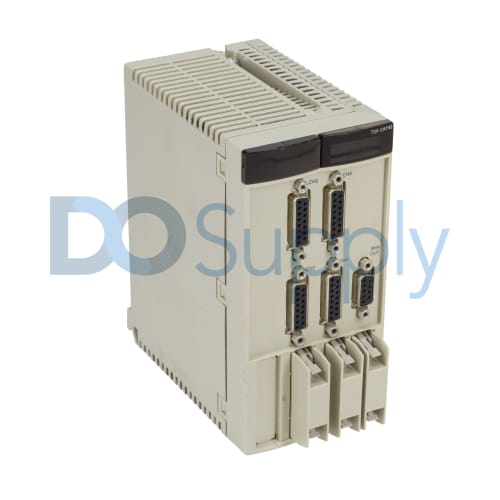

Product image is representative; revision or series may vary. Contact us to request a specific version.
TSXCAY42
The TSXCAY42 motion control module by Schneider Electric excels in managing four axes simultaneously. Designed specifically for servo motor applications, this module incorporates a voltage rating of 24 VDC and features four analog outputs for versatile connectivity.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXCAY42
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Motion Control Module |
| Product Line | Modicon Premium |
| Part Number | TSXCAY42 |
| EAN | 3389110123685 |
| Weight | 2.06 lbs (0.94 kg) |
| Series | Controllers |
| Number of Axes | 4 axes |
| Motor Compatibility | For Servo Motors |
| Analog Outputs | 4 analog outputs |
| Acceleration Time | 8 ms to 10 s |
| Temperature Range | 0 to +60°C |
| Voltage | 24 VDC |
| Mounting Type | Panel mounted |
| Maximum Operating Altitude | 1000 meters above sea level without derating |
| Maximum Operating Humidity | 80% RH (non-condensing) |
| Maximum Storage Humidity | 80% RH (non-condensing) |
Schneider Electric's TSXCAY42 module represents a motion control solution capable of handling tasks across four axes. It has been specifically designed for compatibility with servo motors, ensuring efficient control and precise motion management. This module outputs four analog signals, allowing for flexible integration into various systems and configurations.
With an acceleration time ranging from 8 milliseconds to a maximum of 10 seconds, the TSXCAY42 provides versatility in motion profiles, adapting to various application requirements. This module operates optimally within a thermal range, supporting ambient temperatures from 0 degrees Celsius to 60 degrees Celsius.
Weighing just 0.41 kg, it is lightweight yet packed with functionality, making it ideal for panel mount installations. The TSXCAY42 can also perform reliably at altitudes of up to 1000 meters above sea level without any reduction in performance.
Additionally, the device is designed to withstand operating environments with relative humidity levels reaching 80% (non-condensing), maintaining its integrity and functionality in potentially challenging conditions. Overall, the TSXCAY42 motion control module showcases a blend of efficiency, adaptability, and robust design suitable for advanced automation applications.
