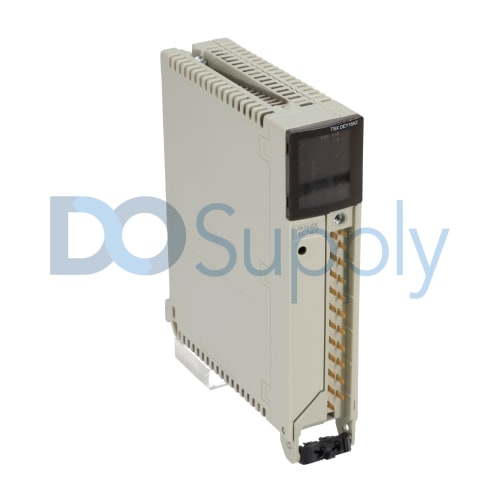

TSXDEY16A2
The TSXDEY16A2 from Schneider Electric operates as a discrete input module, supporting both AC and DC inputs with a voltage rating of 24 V. This device accommodates a total of 16 isolated inputs, making it suitable for diverse industrial applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXDEY16A2
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | Modicon Premium |
| Part Number | TSXDEY16A2 |
| EAN | 3389110725469 |
| Weight | 7.00 lbs (3.18 kg) |
| Module Name | Input Module |
| Discrete Input Voltage | 24 V AC / 24 V DC negative |
| Discrete Input Current | 15 mA AC / 16 mA DC |
| Number of Inputs | 16 resistive isolated |
| Network Frequency | 50/60 Hz (47 to 63 Hz) |
| Input Compatibility | 2-wire/3-wire proximity sensors (EN/IEC 60947-5-2) |
| Response Time | ≤ 20 ms |
| Power Dissipation | 0.89 W AC / (1 W + 0.4 W x No. of channels used) DC |
| Input Type | Discrete |
| Environment | No corrosive gases |
| Humidity | 95% or less (non-condensing) |
| Altitude (ft) | 16404 ft |
The TSXDEY16A2 input module from Schneider Electric provides a robust solution for various automation needs. Operating on a discrete input voltage of 24 V, this device allows connections for both AC and DC applications, drawing 15 mA for AC currents and 16 mA for DC. This input module accommodates 16 resistive isolated inputs, facilitating effective signal processing for diverse operational tasks.
Designed to work within a network frequency range of 50/60 Hz, the TSXDEY16A2 maintains compatibility with 2-wire and 3-wire proximity sensors according to EN/IEC 60947-5-2. The module has a response time capped at 20 ms, ensuring timely data acquisition for responsive system performance.
For power consumption, the device dissipates 0.89 watts in AC mode and employs a formula of 1 watt + 0.4 watts per used channel in DC mode, optimizing efficiency based on operational needs. Operating conditions require an environment free of corrosive gases and with humidity levels at or below 95% to ensure stable functionality.
This input module can be installed at altitudes reaching 16,404 feet, catering to high-elevation applications. Its specifications make the TSXDEY16A2 a dependable choice for input needs in industrial settings without compromising on performance.
