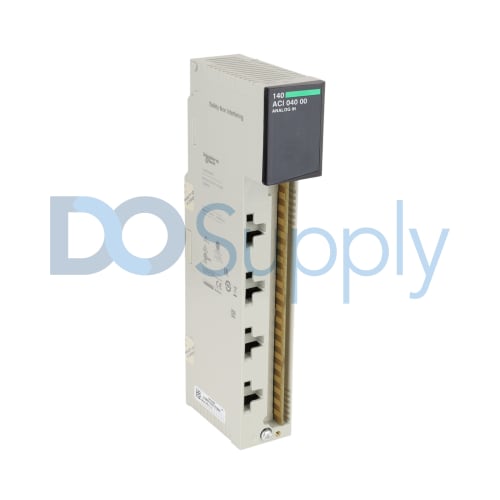

140ACI04000
The 140ACI04000 from Schneider Electric is designed as an analog input module. This unit is capable of handling up to 16 inputs with a maximum absolute input of 30 mA, ensuring versatility in various applications.
-
We sell industrial automation parts backed by our 2-year DO Supply Warranty.
-
Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
-
Repair and exchange services for all existing automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 140ACI04000
| Manufacturer | Schneider Electric |
|---|---|
| Series | Modicon Quantum |
| Part Number | 140ACI04000 |
| Product Type | Analog Input Module |
| Number of Inputs | 16 |
| Absolute Maximum Input | 30 mA |
| Addressing Requirement | 17 input words |
| Input Impedance | 250 Ohm |
| Operating Temperature | 0°C to 60°C |
| Accuracy | 0.125% of full scale (+/-) |
| Storage Temperature | -40°C to 85°C |
| Power Dissipation | 5 W |
| Relative Humidity | 95% without condensation |
| Operating Altitude | max. 5000 m |
The Schneider Electric 140ACI04000 is an analog input module for the Modicon Quantum series, supporting up to 16 input channels. Each input can handle a maximum current of 30 mA, ensuring that it adapts well to various signal requirements. Addressing needs for this module are met through 17 input words, which allow for straightforward configuration within a control system.
With an input impedance rated at 250 Ohms, this module can effectively manage different types of signals. It operates in a temperature range from 0°C to 60°C, providing reliable performance in typical industrial conditions. Furthermore, it offers precision with an accuracy rating of +/- 0.125% of full scale, making it suitable for applications requiring strict monitoring or control.
The storage temperature tolerance ranges from -40°C to 85°C, which expands its usability in harsher environments when not in operation. Power consumption is relatively low at 5 watts, allowing it to integrate smoothly into energy-efficient systems.
Designed to withstand high humidity, the module can operate effectively at 95% relative humidity, provided condensation does not occur. Additionally, it is capable of functioning at elevations of up to 5000 meters above sea level, further enhancing its application in diverse settings.
