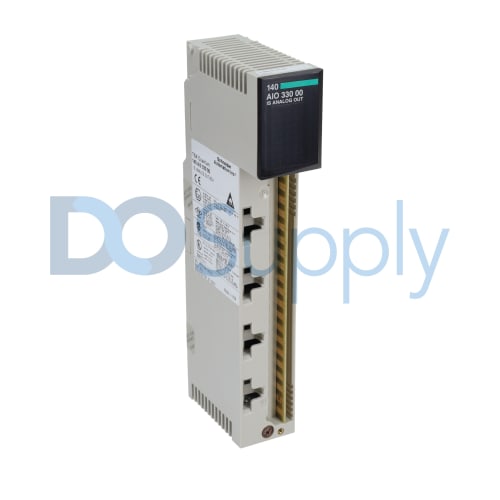

140AIO33000
The Schneider Electric 140AIO33000 is an intrinsically safe analog output module from the Modicon Quantum series. It supports 8 outputs with an accuracy of ±0.2% at a reference temperature of 25°C.
-
We sell industrial automation parts backed by our 2-year DO Supply Warranty.
-
Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
-
Repair and exchange services for all existing automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 140AIO33000
| Manufacturer | Schneider Electric |
|---|---|
| Series | Modicon Quantum |
| Part Number | 140AIO33000 |
| Product Type | Intrinsically Safe Analog Output Module, Modicon Quantum |
| Number of Outputs | 8 |
| Accuracy | ±0.2% of full scale at 25°C |
| Maximum Loop Resistance | 500 Ohm |
| Accuracy Drift | 40 ppm/°C |
| Protection Type | Internal Fuse |
| Linearity | ±1 LSB |
| Marking | CE, II1 G/D-EEx ia IIC |
| Power Dissipation | 12.5 W |
| Weight | 0.30 kg |
| Update Time | 4 ms |
| Bus Current Requirement | 2.5 A |
| Setting Time | 1 ms to ±0.1% of final value |
| Module Format | Standard |
The 140AIO33000 module from Schneider Electric is an intrinsically safe analog output module, specifically designed for application within the Modicon Quantum series. This component encompasses 8 output channels, facilitating efficient control in various systems. With an accuracy rating of ±0.2% of full scale, the module offers reliable data transmission, especially when calibrated at 25°C. It showcases a maximum loop resistance of 500 Ohm.
Temperature fluctuations can affect the performance of electronic devices. However, the accuracy drift for this module is limited to 40 ppm/°C, ensuring that outputs remain stable across temperature changes. Adding to its safety features, an internal fuse safeguards the module against potential overloads.
This unit demonstrates linearity within ±1 Least Significant Bit (LSB) and is marked as compliant with CE and II1 G/D-EEx ia IIC standards. Expected power dissipation during operation is 12.5 W while its lightweight design keeps the total weight to just 0.30 kg. The module features a rapid response time with an update period of 4 ms and a setting time down to 1 ms with an adjustment to ±0.1% of the final output value. It requires a bus current of 2.5 A for optimal performance. Designed in a standard module format, the 140AIO33000 is suited for integration into various control systems, enhancing operational efficiency.
