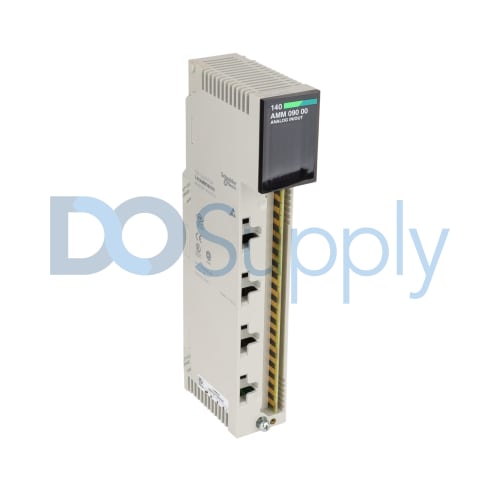

140AMM09000
The 140AMM09000 from Schneider Electric is an analog input/output module designed for bi-directional communication. This module supports four analog input channels and two output channels, providing flexible integration in automation systems.
-
We sell industrial automation parts backed by our 2-year DO Supply Warranty.
-
Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
-
Repair and exchange services for all existing automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 140AMM09000
| Manufacturer | Schneider Electric |
|---|---|
| Series | Modicon Quantum |
| Part Number | 140AMM09000 |
| Product Type | Input/Output Analog Module, Bi-Directional |
| Analog Input Channels | 4 |
| External Power Requirement | 7-30 V DC |
| I/O Modularity | 6 channels |
| Analog Output Channels | 2 |
| Bus Current Requirement | 350 mA |
| Analog Output Range | 4-20 mA |
| Analog Output Resolution | 12 bits |
| Addressing Requirement | 2 output words, 5 input words |
| Maximum Voltage Drop | <30 V DC at 20 mA |
| Module Format | Standard |
| Weight | 0.29 kg |
The Schneider Electric 140AMM09000 is a versatile bi-directional analog module tailored for applications requiring robust input and output capabilities. This device is equipped with four analog input channels, enhancing its ability to gather diverse data. Additionally, it incorporates two analog output channels to facilitate response actions based on the information received.
For functionality, the module demands an external power source ranging from 7 to 30 V DC, ensuring adequate power for operation. It possesses a current requirement of 350 mA, making it suitable for various environments. The module supports a modular configuration with a total of six channels.
The analog output operates within the 4-20 mA range, allowing for standardized communication with many field devices. The output resolution is 12 bits, contributing to high precision in data representation. To integrate effectively into larger systems, it requires 2 output words and 5 input words for addressing.
Under typical operational scenarios, the module ensures a maximum voltage drop of less than 30 V DC at 20 mA. With a standard format, the device weighs in at just 0.29 kg, facilitating easy installation in various control systems.
