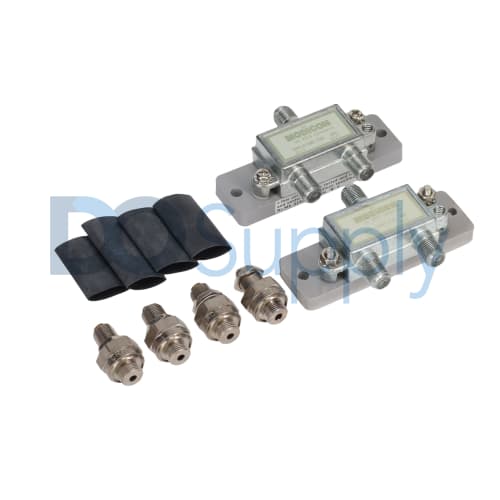

Product image is representative; revision or series may vary. Contact us to request a specific version.
140CHS32000
The 140CHS32000, a component from Schneider Electric's Modicon Quantum series, serves as a Hot Standby Splitter Kit. It efficiently manages coaxial cable termination and operates with an input voltage of 24 V DC while supporting high frequency digital signals.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 140CHS32000
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Hot Standby Splitter Kit |
| Product Line | Modicon Quantum |
| Part Number | 140CHS32000 |
| UPC | 785901153313 |
| Weight | 0.94 lbs (0.43 kg) |
| Application | Coaxial Cable Termination |
| Signal Type | Digital |
| Input Voltage | 24 V DC |
| Frequency Range | High Frequency |
| Cable Type | Coaxial |
| I/O Points | 8 Inputs / 8 Outputs |
| Termination Type | Coax Termination Kit |
| Compatibility | TSX Quantum |
| Redundancy | Hot Standby |
| Mounting | DIN Rail or Panel Mount |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | 0 to 50 degrees Celsius |
| Maximum Operating Humidity | 80% RH (non-condensing) |
| Maximum Storage Humidity | 80% RH (non-condensing) |
Designed to facilitate coaxial cable connections, the 140CHS32000 by Schneider Electric is a Hot Standby Splitter Kit that guarantees redundancy in configurations. This product operates at an input voltage of 24 V DC and is capable of processing high frequency digital signals. Built for robust performance, it incorporates 8 I/O points, allowing for eight inputs and eight outputs, ensuring a seamless flow of data.
The kit is specifically crafted for coax cables, emphasizing compatibility with the TSX Quantum series. It features a coax termination method that simplifies installation and enhances reliability. Enabling a versatile mounting option, users can install the kit either on a DIN Rail or directly onto a panel, catering to different spatial requirements.
The 140CHS32000 functions efficiently within a temperature span of 0 to 40 degrees Celsius, with storage conditions suited from 0 to 50 degrees Celsius. For environmental resilience, it is designed to withstand a maximum humidity level of 80% relative humidity without condensation. These features collectively ensure that the kit maintains optimal performance in various installation scenarios while safeguarding its operational integrity.
