Schneider Electric Modicon Quantum 140DAO85300

Product image is representative; revision or series may vary. Contact us to request a specific version.

140DAO85300

|
Need a Specific Revision?

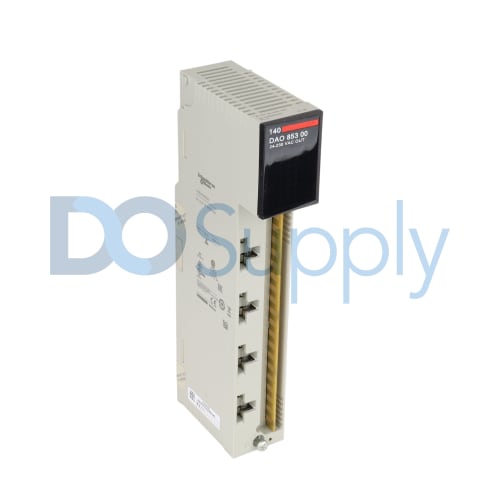

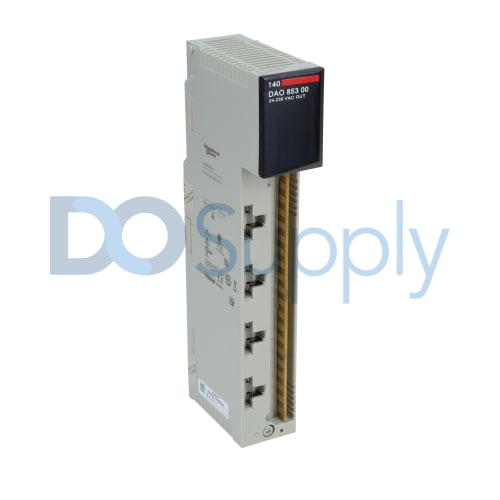

The 140DAO85300 discrete output module by Schneider Electric is designed for use in the Modicon Quantum series. It features 32 channels capable of operating within a voltage range of 20 to 253V AC, ensuring versatility in various applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 140DAO85300

ManufacturerSchneider Electric
Product LineModicon Quantum
Part Number140DAO85300
EAN3595860001511
Weight2.00 lbs (0.91 kg)
Output TypeDiscrete Outputs
Number of Channels32 Channels
Discrete Output Voltage20 to 253V AC
Addressing Requirement2 Output Words
Supply Frequency47-63 Hz
Maximum Voltage Drop1.5V
Groups of Channels4
DV/dt Rating400V/rms
Absolute Maximum Output300Vrms at 10 s AC, 400Vrms at 1 Cycle AC
Operating Temperature Range0°C to 60°C
Storage Temperature Range-40°C to 85°C
Mounting TypeRack Mountable
Surge Current2.5 Amps for 1 ms
Module TypeDiscrete Output Module
CE MarkingYes
Request a Repair

The Schneider Electric 140DAO85300 is a discrete output module within the Modicon Quantum series. This module supports 32 discrete output channels and operates effectively within a voltage range of 20 to 253V AC. The addressing requirement for the module is 2 output words.

Providing flexibility, it can handle a supply frequency of 47 to 63 Hz. Voltage drop under typical operating conditions is capped at 1.5 volts, ensuring efficient performance. This module organizes its output channels into 4 groups, enhancing configuration options. With a DV/dt rating of 400V/rms, the device offers robust signal integrity. For transient conditions, the absolute maximum output voltage is 300Vrms for a duration of 10 seconds in AC operation, or up to 400Vrms for a complete cycle.

The operational temperature capability of the 140DAO85300 ranges from 0°C to 60°C, making it suitable for a variety of environments. Additionally, it can safely be stored at temperatures as low as -40°C up to 85°C. It is designed for rack mounting, facilitating straightforward installation in standard setups. The module can also handle a surge current of 2.5 A for short durations of 1 ms, making it resilient in demanding applications. This component is marked with CE certification, indicating compliance with European safety standards.
