140DRC83000

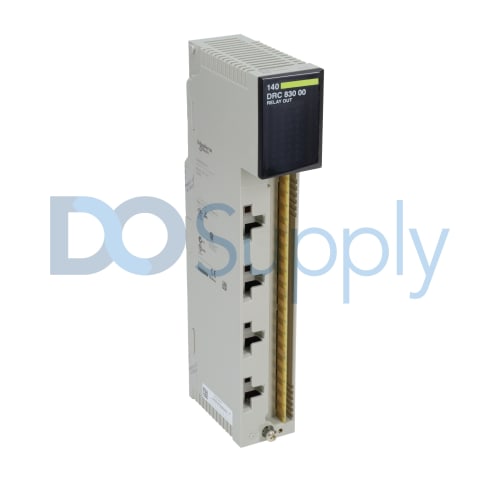

The 140DRC83000 from Schneider Electric's Modicon Quantum series is a dedicated relay output module designed for precise control in automation applications. It features a robust configuration with eight discrete output channels, enabling flexible control options. Each channel uses Form C contact types that incorporate one normally open (NO) and one normally closed (NC) contact. This module supports output voltage levels ranging from 20 to 250V AC, alongside 30 to 150V DC and 5 to 30V DC, providing broad compatibility with different systems.

This output module requires 0.5 output words for addressing, ensuring efficient integration into various control systems. Each output channel can handle a surge current of 20 mA for 10 milliseconds in capacitive loads and is rated with a switching capacity up to 1250 VA for resistive applications. The resistive switching frequency is rated at 30 Hz, allowing for reliable operation in many environments.

The operational temperature range of the 140DRC83000 extends from 0°C to 60°C, making it suitable for typical industrial conditions. Additionally, it can be stored at temperatures ranging from -40°C to 85°C. Rack mounting options allow for straightforward installation in existing setups, facilitating space-efficient integration. The module is rated for a maximum relative humidity of 95% without condensation, enhancing its reliability in humid conditions. This module complies with CE marking, affirming its adherence to safety and quality standards.
