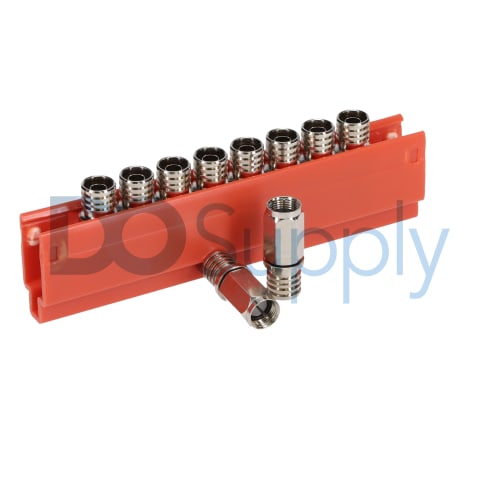

Schneider Electric Modicon Quantum MA-0329-001

Product image is representative; revision or series may vary. Contact us to request a specific version.

MA-0329-001

|
Need a Specific Revision?

The MA-0329-001 is a robust connectivity solution from Schneider Electric's Modicon Quantum series. This F connector type is designed with a sturdy metal build, supporting reliable connections for RG-6 coaxial cables.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for MA-0329-001

ManufacturerSchneider Electric
Product LineModicon Quantum
Part NumberMA-0329-001
EAN3595862372671
Weight0.19 lbs (0.09 kg)
MechanicsF connector type with robust metal construction
Operating Temperature0°C to 60°C
Storage Temperature-40°C to 85°C
Relative HumidityUp to 95% without condensation
AltitudeUp to 5000 meters
CompatibilityRG-6 coaxial cables
Electrostatic Discharge (ESD) Resistance4 kV contact, 8 kV air (IEC 801-2)
Electromagnetic Field (EMF) Resistance10 V/m (80-2000 MHz, IEC 801-3)
Mercury FreeYes
SustainabilityGreen Premium product, EU RoHS Directive compliant, Mercury free, China RoHS Regulation compliant, WEEE compliant
InstallationStraightforward and easy setup
Request a Repair

The MA-0329-001 from Schneider Electric offers a dependable connection solution tailored for the Modicon Quantum series. Its F connector type is reinforced with a durable metal structure, ensuring longevity and robustness in various applications.

Operating within the temperature window of 0°C to 60°C, this connector remains functional in diverse industrial environments and can endure extreme storage conditions from -40°C to 85°C. Additionally, it is capable of performing up to an altitude of 5000 meters and maintains operational reliability in relative humidity levels of 95% without condensation.

The device measures 16 cm in length, 16.5 cm in width, and stands 2 cm tall, weighing 161 grams (5.68 ounces). It is specifically compatible with RG-6 coaxial cables, affording straightforward connectivity options.

In terms of environmental durability, the MA-0329-001 exhibits resistances to electrostatic discharge (4 kV contact, 8 kV air per IEC 801-2) and electromagnetic fields (10 V/m for frequencies between 80 and 2000 MHz per IEC 801-3). This connector is free of mercury and complies with several sustainability directives, including the EU RoHS and China RoHS regulations, as well as WEEE compliance.

Installation of the MA-0329-001 is described as straightforward, simplifying setup while ensuring effective connectivity in various applications.
