BMXART0814

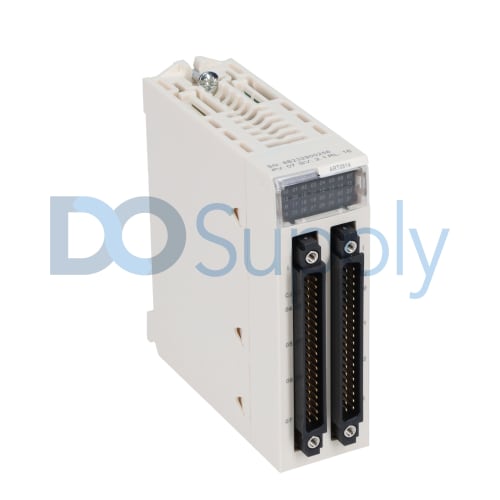

The Schneider Electric BMXART0814 module is an analog input module designed to interface seamlessly with the Modicon X80 series systems. Weighing only 0.36 lbs, this module supports 8 analog inputs connected through 40-way connectors. The conversion to digital signals is performed using a 16-bit sigma-delta method, which guarantees high-resolution output essential for precise monitoring.

This module demonstrates a common mode rejection capability of 120 dB at a frequency of 50/60 Hz, along with a differential mode rejection of 60 dB, significantly enhancing measurement reliability. It is capable of reading data with a nominal cycle time of 400 ms when connected to a temperature probe and 200 ms for thermocouple setups, allowing for timely data collection in dynamic systems. Additionally, the unit maintains operational efficiency with a current consumption of 150 mA at 3.3 V DC or 50 mA at 24 V DC.

Designed for durability, the BMXART0814 boasts a vibration resistance rating of 3 gn and can withstand shocks of up to 30 gn, protecting it from mechanical stresses in active environments. The enclosure offers an IP20 rating, ensuring appropriate protection against solid objects while allowing easy integration into control panels. Suitable for environments from sea level to an altitude of 2000 meters, this module can operate effectively within an ambient temperature range of 0 to 60 °C, making it versatile for a range of industrial automation applications.
