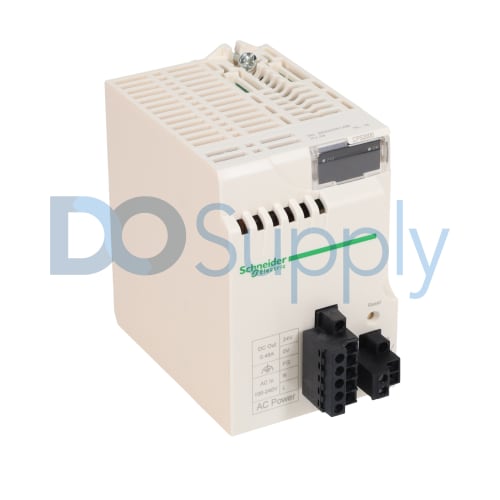

Schneider Electric Modicon X80 BMXCPS2000

Product image is representative; revision or series may vary. Contact us to request a specific version.

BMXCPS2000

|
Need a Specific Revision?

Schneider Electric's BMXCPS2000 is a power supply module designed for the Modicon X80 series. It operates within a primary voltage range of 100 to 240 V and a network frequency of 50/60 Hz, providing a secondary power output of 10.8 W.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for BMXCPS2000

ManufacturerSchneider Electric
Product LineModicon X80
Part NumberBMXCPS2000
EAN3595863908954
Weight0.25 lbs (0.11 kg)
ProductPower Supply Module
Primary Voltage100 to 240 V
Supply Circuit TypeAC
Secondary Power10.8 W
Network Frequency50/60 Hz
Apparent Power0.07 kVA
Input Current0.61 A
Inrush Current60 A
Max Power Dissipation8.5 W
Control TypeRESET Push Button Cold Restart
Electrical Connection1 connector 2 pins alarm relay
Insulation Resistance100 Ohm
Dielectric Strength1500 V
Immunity to Microbreaks1 ms
Request a Repair

The BMXCPS2000 power supply module from Schneider Electric is intended for use within the Modicon X80 series. It is capable of operating at a primary voltage level ranging from 100 to 240 V AC, ensuring compatibility with various configurations. The module delivers a secondary power output of 10.8 W, accommodating different application requirements.

Operating at network frequencies of 50 or 60 Hz, this module has an apparent power capacity of 0.07 kVA. The input current draw is measured at 0.61 A, allowing for efficient operation. It also has a high inrush current tolerance of 60 A, which can help handle initial demand spikes during startup.

The maximum power dissipation is set at 8.5 W, contributing to its overall operational efficiency. A conveniently located RESET push button facilitates cold restarts as needed. An electrical connection is readily available via a 2-pin alarm relay, enhancing integration capabilities.

Insulation resistance is rated at 100 Ohm, ensuring reliable performance, while the dielectric strength reaches up to 1500 V for added safety. Weighing in at just 0.3 kg, this compact module is lightweight and easy to install. Additionally, it features immunity to microbreaks of 1 ms, which helps maintain stability during minor power interruptions.
