BMXDRA1605

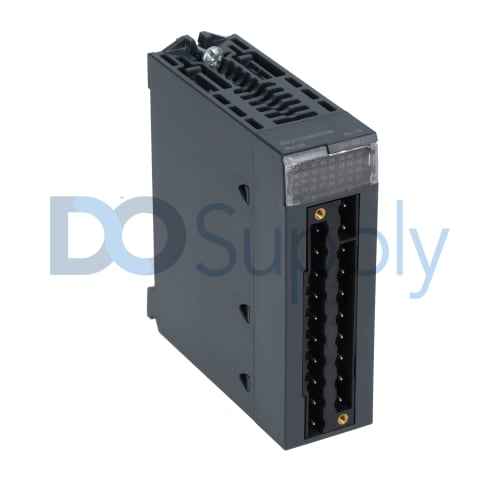

The Schneider Electric BMXDRA1605 serves as a discrete output module designed to provide reliable control through its relay output mechanism. It supports a versatile range of DC discrete output voltages from 24 to 48 V and 19 to 60 V, capable of meeting various application needs. The module has been engineered for efficiency, with typical current consumption noted at 100 mA when operating at 3.3 V DC and a minimum switching current requirement of just 1 mA at 5 V DC.

In terms of performance, the BMXDRA1605 boasts a rapid response time of less than 8 milliseconds on outputs, ensuring quick reaction times for signal changes. This output module also incorporates significant isolation features, as demonstrated by its insulation resistance, which exceeds 10 Mohm and allows for a dielectric strength of 2000 V AC during a one-minute period at 50/60 Hz.

The physical protection of this device adheres to an IP20 rating, permitting use in clean and dry environments. It is designed to endure stress with a vibration resistance of 3 gn and a shock resistance rating of 30 gn, ensuring durability throughout its working life. The operational temperature range from 0 to 60 °C allows installation in various environments.

User-friendly features include multiple status LEDs: one green LED indicating run status, a channel diagnostic LED each for individual channels, a red LED for error signaling, and another red LED for I/O status verification. Weighing in at 0.15 kg, this output module offers a compact and robust solution for diverse industrial applications.
