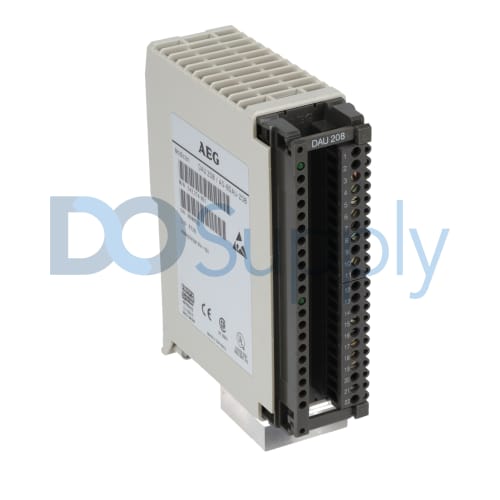

Schneider Electric Modicon AS-BDAU-208

Product image is representative; revision or series may vary. Contact us to request a specific version.

AS-BDAU-208

|
Need a Specific Revision?

The AS-BDAU-208 is an 8-channel analog output module from Schneider Electric's Modicon series. Capable of providing an output voltage range of ±10 V, it features an 11-bit resolution and a precision of ±0.1% of full scale.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for AS-BDAU-208

ManufacturerSchneider Electric
Product LineModicon
Part NumberAS-BDAU-208
Weight2.19 lbs (0.99 kg)
Module TypeAnalog Output Module
Outputs8 channels
Output Voltage Range±10 V
Resolution11-bit and sign
Accuracy±0.1% of Full Scale
Conversion Time<1 ms (for all channels)
Load Impedance>3.3 kΩ
Isolation (Channel to Bus)700 V
Isolation (Channel to External Supply)700 V
Isolation (Channel to Channel)None
Internal Power Requirement≤30 mA at 5 V
External Power Requirement≤120 mA at 24 VDC
ApprovalsUL, CUL, FM, CE
Request a Repair

The AS-BDAU-208 analog output module from Schneider Electric's Modicon series is engineered for robust performance in control applications. This module supports a total of eight output channels, each capable of an output voltage range of ±10 V. The resolution of this unit is specified at 11-bit with sign representation, facilitating precise control capabilities. With a high accuracy rating of ±0.1% of full scale, it enables dependable signal output.

This module features a rapid conversion time of less than 1 millisecond, applicable across all channels, which is essential for dynamic control environments. The load impedance is greater than 3.3 kΩ, allowing it to interface effectively with various devices. Importantly, the AS-BDAU-208 maintains isolation standards of 700 V between the channel and bus, as well as between the channel and external supply, ensuring protection against electrical interference. However, no isolation is provided between channels.

The module's power requirements include an internal consumption of up to 30 mA at 5 V and an external supply requirement of no more than 120 mA at 24 VDC. Weighing in at approximately 0.35 kg (0.77 lbs.), it is designed for easy installation in various setups. The AS-BDAU-208 also meets several approval standards, including UL, CUL, FM, and CE, ensuring it aligns with recognized safety and performance criteria.
