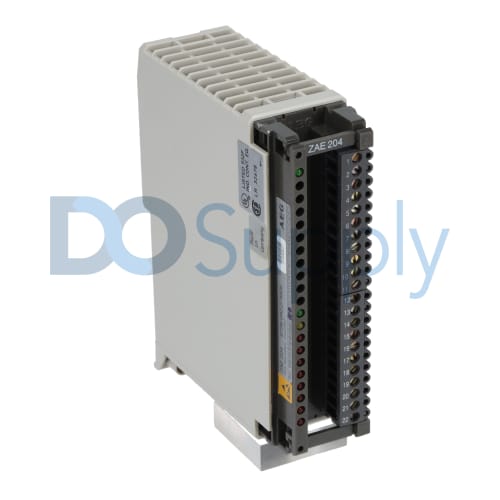

Schneider Electric Modicon AS-BZAE-204

Product image is representative; revision or series may vary. Contact us to request a specific version.

AS-BZAE-204

|
Need a Specific Revision?

The AS-BZAE-204 from Schneider Electric is a high-speed counter input module. Tailored for efficient digital input, this module supports up to four channels with a frequency capacity of 1 kHz, making it suitable for various applications requiring precise monitoring.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for AS-BZAE-204

ManufacturerSchneider Electric
Product LineModicon
Part NumberAS-BZAE-204
Weight0.63 lbs (0.28 kg)
Module NameHigh-Speed Counter (HSC) Input Module A120 IO HSC 4CH 1KHZ
Number of Channels4 channels
Input TypeDigital input
Input Frequency1 kHz
Operating Voltage24 VDC
Input Voltage Range20.4 VDC to 28.8 VDC
Input Signal TypeTTL/CMOS compatible (0-24 V)
Communication ProtocolModbus, CANopen
Mounting TypeDIN rail mountable
Power Consumption3.6 W
Environmental ProtectionIP20
Operating Temperature Range0°C to 55°C
Storage Temperature Range-40°C to 85°C
Output TypeDigital outputs
Request a Repair

The Schneider Electric AS-BZAE-204 is a high-speed counter input module in the Modicon series. It excels in capturing digital inputs across four distinct channels, functioning effectively at a maximum input frequency of 1 kHz. Operating on a 24 VDC supply, the module allows a voltage range from 20.4 to 28.8 VDC, catering to a broad spectrum of applications. The input signal type is compatible with TTL and CMOS standards, supporting a range of 0 to 24 V.

This device leverages Modbus and CANopen communication protocols for seamless integration with various control systems. The module is designed with a focus on efficiency, consuming approximately 3.6 W of power. For installation, it features a DIN rail mounting design, facilitating straightforward setup in a variety of configurations. The AS-BZAE-204 provides environmental protection with an IP20 rating, making it suitable for standard indoor environments. It operates effectively within temperatures ranging from 0°C to 55°C and can be stored in conditions as extreme as -40°C to 85°C.

Digital outputs from this module enhance its functionalities, enabling it to relay processed information back into automated systems. Its compact dimensions of 70mm in width, 90mm in height, and 60mm in depth make it efficient for space utilization in modern automation setups.
