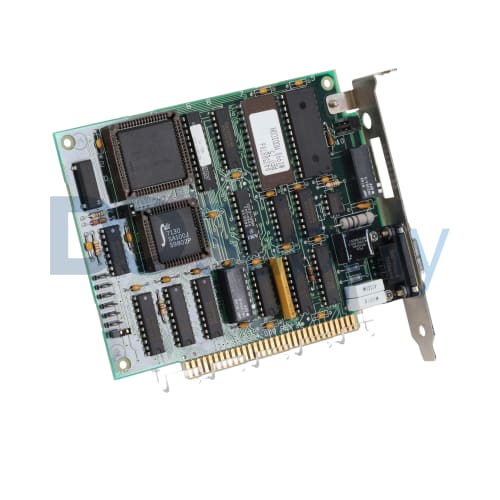

Schneider Electric Modicon AS-S954-002

Product image is representative; revision or series may vary. Contact us to request a specific version.

AS-S954-002

|
Need a Specific Revision?

The AS-S954-002 is a Modbus Plus ISA SA85 Card designed for robust industrial communication. With a data transfer rate of 1 Mbps, it connects seamlessly via a 9-pin female D-sub connector.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for AS-S954-002

ManufacturerSchneider Electric
Product TypeModbus Plus ISA SA85 Card
Product LineModicon
Part NumberAS-S954-002
Weight0.06 lbs (0.03 kg)
Bus InterfaceISA (Industry Standard Architecture)
Communication ProtocolMODBUS PLUS network protocol
Connector Type9-pin female D-sub connector
Data Transfer Rate1 Mbps (Megabit per second)
Operating Temperature Range0°C to 60°C (32°F to 140°F)
Storage Temperature Range-40°C to 85°C (-40°F to 185°F)
Relative Humidity5% to 95% non-condensing
Power Requirements5V DC, 2A (typical)
CompatibilityCompatible with Modicon 984 series PLCs
MountingInstalls directly into ISA slot on motherboard
Network Topology SupportSupports daisy-chain or star configurations
Request a Repair

The AS-S954-002 card from Schneider Electric is a Modbus Plus ISA SA85 variant designed for effective communication within industrial systems. This card employs the ISA bus interface standard for reliable connectivity. The communication protocol utilized is MODBUS PLUS, ensuring efficient data exchanges in a networked environment. Connectivity is achieved through a 9-pin female D-sub connector, supporting a data transfer rate of 1 Mbps.

Operating within a temperature range of 0°C to 60°C (32°F to 140°F), the AS-S954-002 remains functional under typical operational conditions. Its storage temperature capability extends from -40°C to 85°C (-40°F to 185°F), allowing for use in harsher environments. The card performs effectively in conditions of relative humidity between 5% and 95%, where no condensation occurs.

Powering this ISA card typically requires a 5V DC supply with a 2A current. The AS-S954-002 is designed specifically for compatibility with Modicon 984 series PLCs, making it a valuable component in those setups. Weighing only about 0.11 lbs (0.05 kg), it is lightweight and easy to integrate directly into the ISA slot of a motherboard. Furthermore, it supports both daisy-chain and star configurations for network topology, allowing versatile options for network design.
