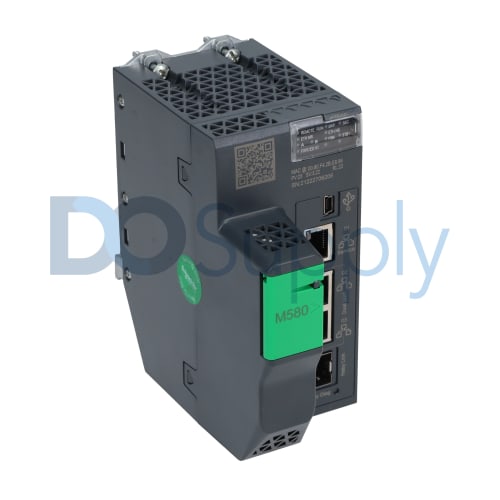

BMEH584040
The BMEH584040 from Schneider Electric is a redundant processor module suitable for Modicon systems. Designed for robust performance, it features a compact form factor with support for one rack and accommodates 16 remote I/O stations.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for BMEH584040
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Redundant processor module |
| Product Line | Modicon |
| Part Number | BMEH584040 |
| Weight | 1.00 lbs (0.45 kg) |
| Number of Racks | 1 |
| Number of Remote I/O Stations | 16 |
| Number of Distributed Equipment | 0 |
| Expandable Flash | 4 GB data storage |
| Integrated RAM for System Memory | 10 kB |
| Integrated RAM for Program | 16 MB |
| Number of Ethernet Ports | 4 |
| Number of USB Ports | 1 |
| IP Protection | IP20 |
| Number of LEDs | 14 |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
The Schneider Electric BMEH584040 is engineered as a redundant processor module specifically for use within the Modicon series. This module is structured to support one rack and offers connectivity for up to 16 remote I/O stations, facilitating extensive control options.
Storage capabilities include an expandable flash memory of 4 GB, allowing for significant data retention. For processing tasks, the module integrates 16 MB of RAM dedicated to programs and an additional 10 kB allocated for system memory, ensuring efficient operation across various applications.
This design features four Ethernet ports, providing versatile networking abilities, as well as a single USB port for enhanced connectivity options. Operating at an IP20 protection rating indicates that the module is suitable for installation in indoor environments that are not directly exposed to moisture or dust.
With a total of 14 LEDs, users have a clear visual indication of system status. The module is capable of withstanding vibration resistance up to 3 gn and shock resistance rated at 30 gn, ensuring that it can endure demanding industrial conditions typically found in automation settings.
