BMXNOM0200

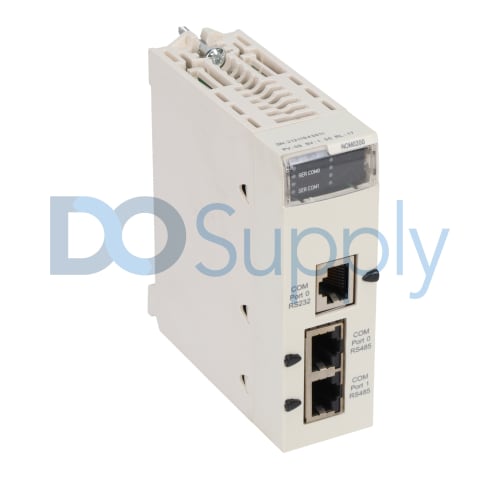

The BMXNOM0200 Serial Link Module from Schneider Electric is a critical component within the Modicon series. Designed to facilitate communication in automation systems, this module operates on an internal power supply sourced through the rack, with a current consumption of 80 milliamps at 24 volts DC.

It is built in a standard module format that allows for easy integration in compatible systems. Connection options include two RS485 ports, enabling multi-point communications, and one RS232 port for straightforward connections to various devices. The unit also features a degree of protection rated at IP20, providing adequate safeguards against solid objects.

For operational feedback, the module includes four local status indicators: a red LED signifying a module fault and three green LEDs indicating module activity, including one for general operation and two for communication activity on the serial links. The BMXNOM0200 can function effectively in environments where ambient temperatures range from 0 to 60 degrees Celsius, accommodating a wide range of industrial conditions. Additionally, it is designed to operate in environments with relative humidity levels between 10% and 95% without the risk of condensation affecting its performance.
