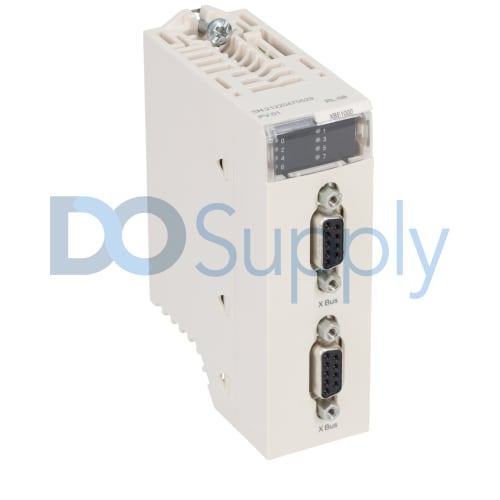

Schneider Electric Modicon BMXXBE1000

Product image is representative; revision or series may vary. Contact us to request a specific version.

BMXXBE1000

|
Need a Specific Revision?

The BMXXBE1000 is a backplane expander from Schneider Electric's Modicon series. It features two female connectors for electrical connections and is designed for local signaling via an LED, allowing for straightforward monitoring of its status.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for BMXXBE1000

ManufacturerSchneider Electric
Product LineModicon
Part NumberBMXXBE1000
EAN3595863992175
Weight1.38 lbs (0.62 kg)
ProductBackplane Expander
Electrical Connection2 Female Connectors
Local SignallingLED
Current Consumption160 mA
Degree of ProtectionIP20
Product CertificationsCE, UL, CSE
Protective TreatmentTC
Maximum Operating Temperature60 degrees Celsius
Minimum Operating Temperature0 degrees Celsius
Operating HumidityUp to 80% (non-condensing)
Storage HumidityUp to 80% (non-condensing)
Operating AltitudeUp to 1000m above sea level
Request a Repair

The Schneider Electric BMXXBE1000 is a backplane expander designed for integration within the Modicon series. It features reliable electrical connectivity through two female connectors, facilitating straightforward setup and compatibility. The expander supports local signaling through a built-in LED indicator, providing clear status feedback to users.

With a current draw of 160 mA, it ensures efficient operation while being confined within its design limits. This component operates efficiently in environments with ambient temperatures between 0 and 60 degrees Celsius, making it versatile for a range of indoor applications. Its degree of protection is IP20, offering basic safeguards against dust and ensuring reliable performance in appropriate settings.

The BMXXBE1000 is certified for safety and compliance under CE, UL, and CSE standards, ensuring that it meets various industry requirements. Furthermore, it can operate in relative humidity levels reaching up to 80% without condensation, and similar storage conditions are applicable. This backplane expander is capable of functioning at altitudes up to 1000 meters above sea level, broadening its potential deployment scenarios.
