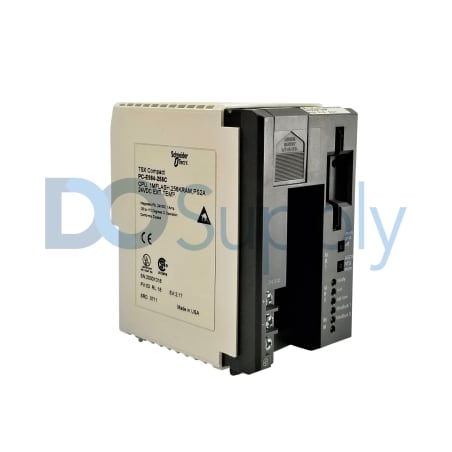

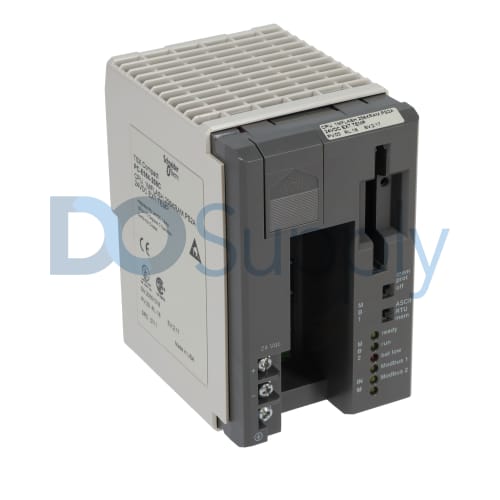

Schneider Electric Modicon PC-E984-258C

Product image is representative; revision or series may vary. Contact us to request a specific version.

PC-E984-258C

|
Need a Specific Revision?

The PC-E984-258C is a compact CPU manufactured by Schneider Electric, belonging to the Modicon series. It features a memory capacity of 512K and supports up to 1920 registers, making it suitable for complex tasks.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for PC-E984-258C

ManufacturerSchneider Electric
Product TypeCompact CPU
Product LineModicon
Part NumberPC-E984-258C
Weight3.00 lbs (1.36 kg)
Memory512K
Registers1920
Conformal CoatingYes
Scan Time2.5 ms/k
Communication Ports2 Modbus
Local I/O256
Total I/O512/512
I/O Drops1
Maximum Racks4
Request a Repair

The Schneider Electric PC-E984-258C is classified as a compact CPU within the Modicon series. It includes a substantial memory of 512K and accommodates 1920 registers, which is essential for a wide range of applications. This device enhances operational reliability with its conformal coating, providing protection against environmental factors.

It operates effectively with a scan time of 2.5 milliseconds per k, which ensures responsive performance. The CPU also features two Modbus communication ports, facilitating efficient connectivity and data transmission.

In terms of I/O capabilities, the unit supports 256 local I/O points and a total I/O configuration of 512/512. It accommodates one I/O drop, which adds to its flexibility in system design. The design permits a maximum of four racks, expanding its operational capacity in complex setups.
