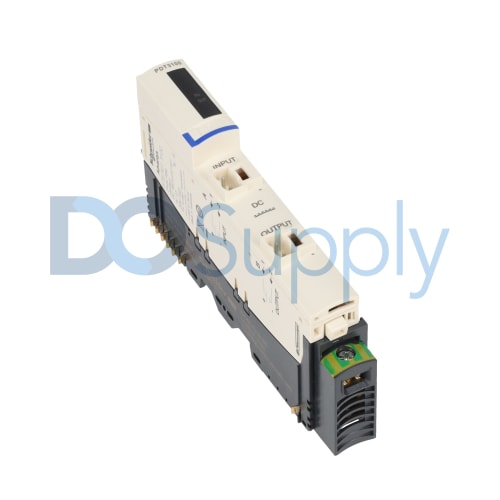

Schneider Electric Modicon STBPDT3100K

Product image is representative; revision or series may vary. Contact us to request a specific version.

STBPDT3100K

|
Need a Specific Revision?

The STBPDT3100K from Schneider Electric is a power distribution kit designed for use with Modicon series equipment. It operates with a rated supply voltage of 24 VDC and supports varying output currents depending on the temperature conditions, maintaining efficiency in a range of environments.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for STBPDT3100K

ManufacturerSchneider Electric
Product TypeStandard Power Distribution Kit
Product LineModicon
Part NumberSTBPDT3100K
Weight0.13 lbs (0.06 kg)
Rated Supply Voltage24 VDC
Supply Circuit TypeDC
Output Current (at 45°C)10.0 A
Output Current (at 60°C)8.0 A
Output Current (at 70°C)6.0 A
IP RatingIP20
Minimum Operating Temperature0°C
Maximum Operating Temperature60 °C
Minimum Storage Temperature-40°C
Maximum Storage Temperature85 °C
Relative Humidity95% (Non-Condensing)
Request a Repair

The STBPDT3100K is a standard power distribution kit by Schneider Electric, part of the Modicon series. This kit is engineered to function effectively at a rated supply voltage of 24 VDC, catering to direct current applications.

Output current capabilities vary with temperature, supporting 10.0 A when temperatures are at 45°C, decreasing to 8.0 A at 60°C, and further limiting to 6.0 A at 70°C. The device is built with an IP20 ingress protection rating, indicating its suitability for environments without significant exposure to dust or moisture.

It is designed to operate within a temperature range of 0°C to 60°C, ensuring reliable performance in many industrial conditions. For storage purposes, this kit can withstand temperatures from a frigid -40°C up to a maximum of 85°C. Additionally, it supports an impressive relative humidity level of 95% in non-condensing conditions, making it versatile for various application needs.
