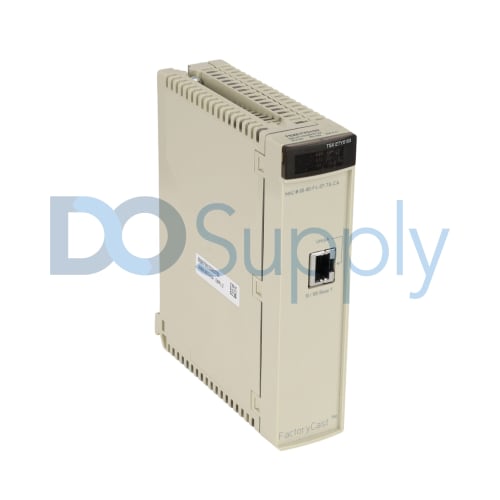

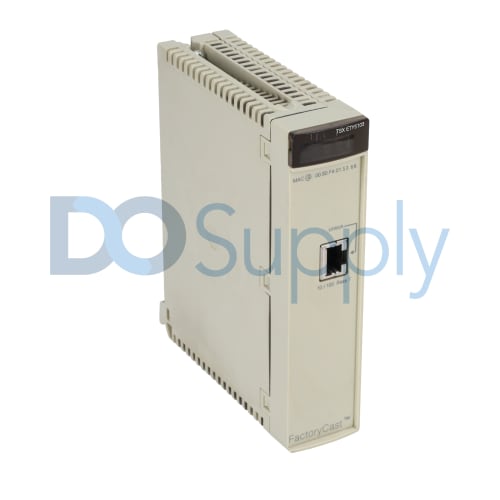

Product image is representative; revision or series may vary. Contact us to request a specific version.
TSXETY5103
The Schneider Electric TSXETY5103 is an Ethernet TCP/IP module for Modicon systems. Capable of data transmission at 10 or 100 Mbit/s, this module offers a variety of communication services, allowing efficient integration into control setups.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXETY5103
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | Modicon |
| Part Number | TSXETY5103 |
| EAN | 3595863767667 |
| Weight | 0.69 lbs (0.31 kg) |
| Module Name | Ethernet TCP/IP Module |
| Transmission Rate | 10/100 Mbit/s |
| Communication Services | Bandwidth management, FDR server, Global Data, I/O scanning, Modbus TCP messaging, NTP time synchronization, optional TCP open, SMTP e-mail notification, SNMP agent, Uni-TE messaging, SOAP XML Web (server) |
| Environment | Clean indoor environment with no corrosive chemicals |
| Maximum Operating Altitude | 1000 meters above sea level |
| Memory Description | User web page size 8 MB |
| Current Consumption | 530 mA at 5 V DC |
| Module Format | Standard |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 60°C |
| Relative Humidity | 10% to 95% at 60°C without condensation |
| IP Degree of Protection | IP20 |
| Standards | CSA, UL |
The Schneider Electric TSXETY5103 is an Ethernet TCP/IP module, intended for use within Modicon applications. It facilitates data transmissions at both 10 and 100 Mbit/s, adapting easily to various network speeds. This module offers comprehensive communication services, including bandwidth management, I/O scanning, and Modbus TCP messaging, thereby enhancing operational flexibility and reliability. Additionally, it supports advanced functionalities, such as NTP time synchronization and UniTE messaging.
Designed for clean indoor environments free from corrosive substances, the TSXETY5103 can operate at altitudes of up to 1000 meters above sea level. Its operational capabilities include a temperature range from a minimum of 0°C up to a maximum of 60°C, ensuring reliability in various applications. The module can handle relative humidity levels between 10% to 95% at 60°C without condensation, making it suitable for different environmental conditions.
In terms of power requirements, the TSXETY5103 has a current consumption of 530 mA at 5 V DC. The module offers an 8 MB size for user web pages, allowing sufficient memory for application needs. The standard format allows for convenient installation. With an IP20 degree of protection and compliance with CSA and UL standards, the TSXETY5103 ensures safety and durability in its operational use.
