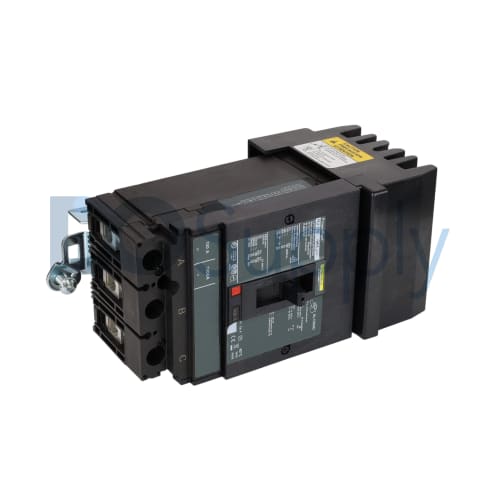

Product image is representative; revision or series may vary. Contact us to request a specific version.
HJA36100
The HJA36100 circuit breaker from Schneider Electric's PowerPact series provides reliable overcurrent protection for electrical circuits. This device supports 3 poles and operates within a voltage rating of 600 VAC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HJA36100
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Circuit Breaker |
| Product Line | PowerPact |
| Part Number | HJA36100 |
| UPC | 785901600978 |
| Weight | 5.00 lbs (2.27 kg) |
| Frame Type | H Frame |
| Frequency | 50/60 Hz |
| Poles | 3 |
| Mounting Type | Bolt-on |
| Rated Current | 100 A |
| Trip Unit Type | Thermal Magnetic |
| Voltage Rating | 600 VAC |
| Operating Temperature Range | -25°C to 70°C |
| Interrupting Capacity | 65 kA @ 480V |
| Terminal Type | Line and load lugs |
| Standards | UL 489, CSA |
The Schneider Electric HJA36100 circuit breaker serves as a crucial component in electrical systems. Designed as part of the PowerPact series, this H frame circuit breaker accommodates a rated current of 100 A. It operates effectively at both 50 and 60 Hz frequencies. Its robust design is rated for a maximum voltage of 600 VAC.
As a 3-pole device, the HJA36100 is configured for use in multi-phase applications. The thermal magnetic trip unit ensures that it reacts promptly to overloads and short circuits. The operational temperature range spans from -25°C to 70°C, making it suitable for diverse environmental conditions.
With a significant interrupting capacity of 65 kA at 480V, the circuit breaker ensures system protection from faults. The terminal type includes both line and load lugs, which simplify connections during installation. Compliance with UL 489 and CSA standards confirms that this circuit breaker meets rigorous safety and performance requirements. At a weight of 2.27 kg, it fits well into both new installations and replacements.
