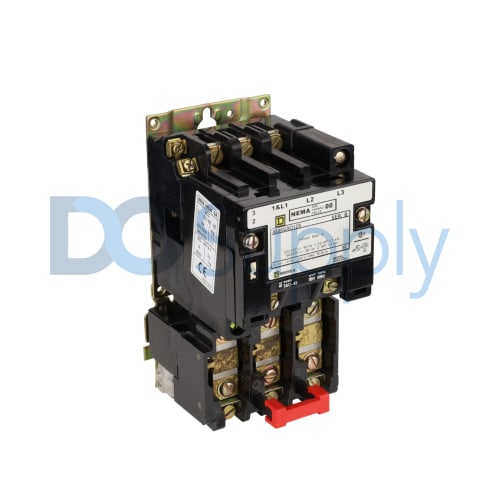

Schneider Electric Square D 8536SAO12SV06S

Product image is representative; revision or series may vary. Contact us to request a specific version.

8536SAO12SV06S

|
Need a Specific Revision?

The Schneider Electric 8536SAO12SV06S is a non-reversing motor starter designed for reliable operation in industrial environments. This model supports a maximum voltage of 600 volts AC and operates under a current rating of 9 Amps. It is suitable for 3-phase systems.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 8536SAO12SV06S

ManufacturerSchneider Electric
Product TypeMotor Starter
Product LineSquare D
Part Number8536SAO12SV06S
Starter TypeNon-Reversing
Current Rating9 Amps
Number of Poles3 Poles
Maximum Voltage Rating600 Volts AC
Phases3-Phase
Horsepower Ratings1.5 HP at 200 Volts AC; 1.5 HP at 230 Volts AC; 2 HP at 450 Volts AC; 2 HP at 575 Volts AC
Coil Voltages440 Volts AC 50 Hz; 480 Volts AC 60 Hz
NEMA Size0
Circuit-Breaker Short-Circuit Current Rating5 kA at 600 Volts AC
Fuse Short-Circuit Current Rating5 kA at 600 Volts AC
Enclosure TypeOpen-Style
Request a Repair

The 8536SAO12SV06S motor starter from Schneider Electric’s Square D series serves as a reliable choice for managing motor operations. Designed primarily for non-reversing applications, it ensures stable performance with a current rating of 9 Amps. This unit is configured with three poles, making it suitable for 3-phase functionality.

The maximum operational voltage for this motor starter reaches up to 600 volts AC. It caters to several horsepower ratings, including 1.5 HP at both 200 and 230 volts AC, and offers 2 HP at voltages of 450 and 575 volts AC. Additionally, users can select from coil voltages of 440 volts AC at 50 Hz or 480 volts AC at 60 Hz, allowing for versatility in different electrical configurations.

Built to endure demanding conditions, the starter has an NEMA size designation of 0, indicating its compact design, further complemented by its open-style enclosure. In terms of safety, this starter is rated for short-circuit protection with both circuit-breaker and fuse ratings of 5 kA at a maximum of 600 volts AC, ensuring reliable safeguarding of the connected motors in various applications.
