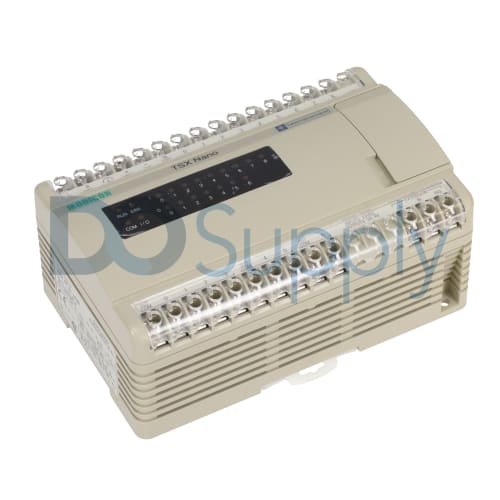

Product image is representative; revision or series may vary. Contact us to request a specific version.
TSX07311628
The TSX07311628, part of Schneider Electric's CPUs series, operates as a nano-programmable controller, featuring a compact design that weighs 0.79 pounds (0.36 kg). It accepts power supply voltages from 100 to 240 Volts AC and handles input voltages between 9 and 24 Volts DC, providing versatility for various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSX07311628
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Nano-Programmable Controller |
| Product Line | Telemecanique |
| Part Number | TSX07311628 |
| Weight | 1.06 lbs (0.48 kg) |
| Series | CPUs |
| Power Supply Voltage | 100 to 240 Volts AC |
| Input Voltage Rating | 9 to 24 Volts DC |
| Total Number of Inputs/Outputs | 16 inputs/outputs |
| Number of Relay Outputs | 7 relay outputs |
| Supply Voltage Limits | 85 to 264 Volts AC |
| Nominal Frequency | 50 to 60 Hertz |
| Required Power | Less than 30 volt-amperes |
| Ambient Operating Temperature | 0 to 60°C (in a non-condensing environment) |
| Storage Temperature | -25 to 70°C (in a non-condensing environment) |
| Output Characteristic | Normally Open (NO) contact |
| Output Response Time | Less than 5 milliseconds (state 0 to 1) and less than 10 milliseconds (state 1 to 0) |
| Operating Altitude | Up to 6,562 feet (2,000 meters) above sea level |
| Physical Interface Type | Non-isolated RS-485 interface |
The Schneider Electric TSX07311628 is a nano-programmable controller designed for efficient control applications. This compact device has a weight of 0.79 pounds (0.36 kilograms). It operates on a wide power supply range, accepting AC voltages from 100 to 240 Volts. For its input voltage, the controller supports a range of 9 to 24 Volts DC.
The unit features a total of 16 inputs and outputs and provides 7 relay outputs for versatile control options. Its supply voltage can handle limits between 85 to 264 Volts AC while working at a nominal frequency of 50 to 60 Hertz. It requires less than 30 volt-amperes for operation, making it energy efficient.
In terms of environmental conditions, the TSX07311628 is suitable for operation in non-condensing environments with ambient temperatures ranging from 0 to 60°C. It can withstand storage temperatures from -25 to 70°C, ensuring durability during varied conditions. The outputs are configured with a normally open (NO) characteristic and respond within 5 milliseconds when transitioning from state 0 to 1 and within 10 milliseconds when switching back from state 1 to 0.
This controller is designed to function effectively at altitudes of up to 6,562 feet (2,000 meters) above sea level. It includes a non-isolated RS-485 interface for physical communication, simplifying integration into existing systems. The TSX07311628 serves as a reliable solution for various automation tasks.
