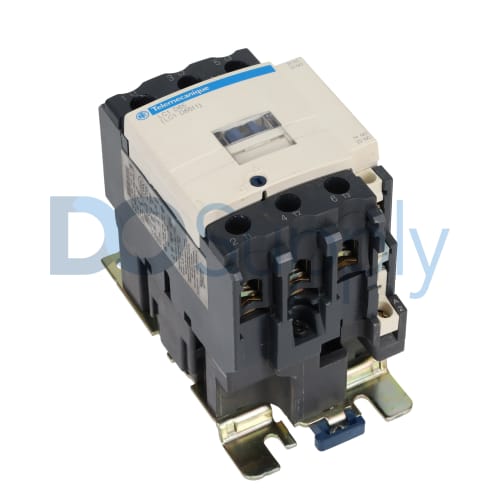

LC1D6511G6
The LC1D6511G6 from Schneider Electric is an IEC non-reversing contactor designed for reliable operation in various applications. It supports a rated operational current of 65 A and features control circuit voltage of 120 VAC, accommodating a frequency range of 50 Hz to 60 Hz.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for LC1D6511G6
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | IEC Non-Reversing Contactor |
| Product Line | TeSys |
| Part Number | LC1D6511G6 |
| Number of Poles | 3 Poles |
| Rated Operational Current (AC-3) | 65 A |
| Control Circuit Voltage | 120 VAC |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Hp Rating (200-230/240 V, 3-Ph) | 20 Hp |
| HP Rating (460-575 V, 3-Ph) | 50 Hp |
| Mounting Type | DIN Rail or Panel Mount |
| Terminal Type | Screw Clamp Terminals |
| IP Rating | IP20 |
| Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | 60 °C |
The Schneider Electric LC1D6511G6 is an IEC non-reversing contactor engineered for durable performance. With an operational current capability of 65 A, it effectively manages motor starting and stopping applications. This device is equipped with three poles, ensuring versatility in various switching roles. It operates on a control circuit voltage of 120 VAC, functioning efficiently within a frequency range of 50 Hz to 60 Hz.
In terms of horsepower ratings, the LC1D6511G6 supports up to 20 HP for 200 to 240 V in a three-phase setup and reaches a rating of 50 HP at 460 to 575 V. Installation options include DIN rail or panel mounting, allowing for flexibility in configuration. Screw clamp terminals facilitate secure connections, enhancing reliability during operation.
With an IP20 rating, this contactor provides adequate protection against solid ingress, making it well-suited for a variety of industrial environments. It functions smoothly within a temperature range starting from a minimum of -25 °C up to a maximum of 60 °C, catering to different operational settings while maintaining performance.
