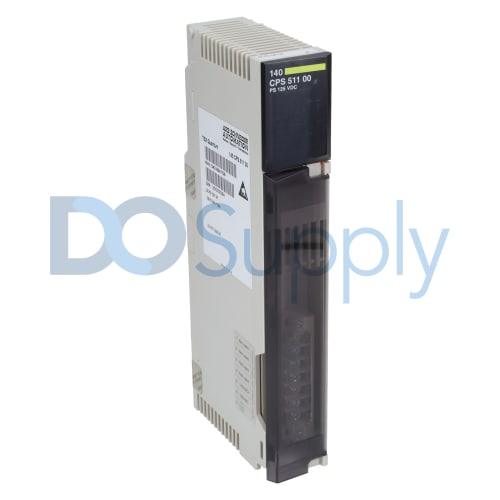

Schneider Electric TSX COMPACT 140CPS51100

Product image is representative; revision or series may vary. Contact us to request a specific version.

140CPS51100

|
Need a Specific Revision?

The Schneider Electric 140CPS51100 is a power supply module designed for PLC applications in the TSX COMPACT series. It offers an input voltage range of 100 to 150 V DC and delivers a steady output voltage of 5.1 V DC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 140CPS51100

ManufacturerSchneider Electric
Product TypePLC Module Power Supply
Product LineTSX COMPACT
Part Number140CPS51100
EAN3595861132122
Weight0.63 lbs (0.28 kg)
Input Voltage125 V DC (100...150 V)
Inrush Current10 A
Output Voltage5.1 V DC
Power Dissipation2 + (3 x Iout) where Iout is in A
Input Current400 mA at 125 V
Input Power Interruption<= 1 ms
Output Current0.3...3 A (Standalone)
Local Signalling1 LED (Green Power - PWR OK)
MarkingCE
Associated Fuse Rating0.75 A Slow-Blow
Request a Repair

The Schneider Electric 140CPS51100 power supply module serves as a reliable source for PLC applications within the TSX COMPACT series. It operates with an input voltage designed for a range of 100 to 150 V DC, making it versatile for various setups. When powered at 125 V DC, the input current drawn is 400 mA. Inrush current during startup is limited to 10 A, helping to prevent electrical surges that could disrupt operation.

This module maintains an output voltage of 5.1 V DC, crucial for powering connected devices. The power dissipation formula for this unit is defined as 2 + (3 x Iout), where Iout is the output current expressed in amperes. In standalone conditions, the device can provide output current levels between 0.3 A and 3 A.

For safety and operational feedback, the unit includes a single LED indicator that lights up green to signal that power is operational (PWR OK). It is marked with CE certification, demonstrating compliance with European safety standards. Moreover, a slow-blow fuse rated at 0.75 A is associated with this module to further enhance safety mechanisms. The compact design contributes to a lightweight profile of 0.45 kg, allowing for easy installation in various control panel configurations.
